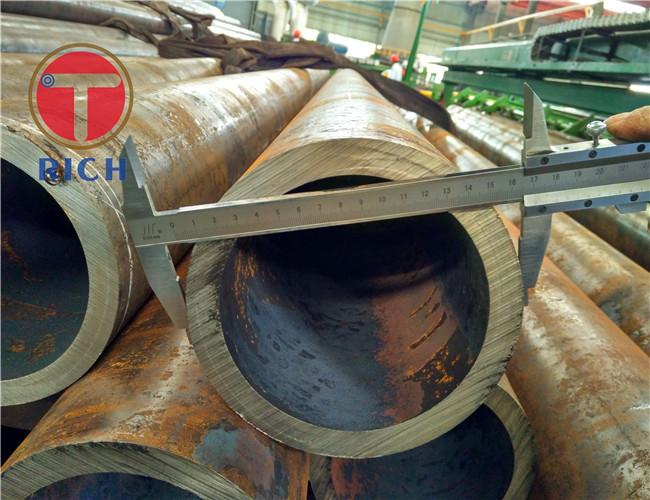

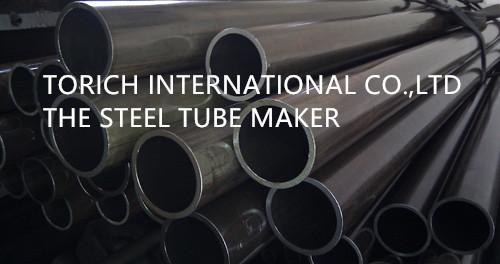

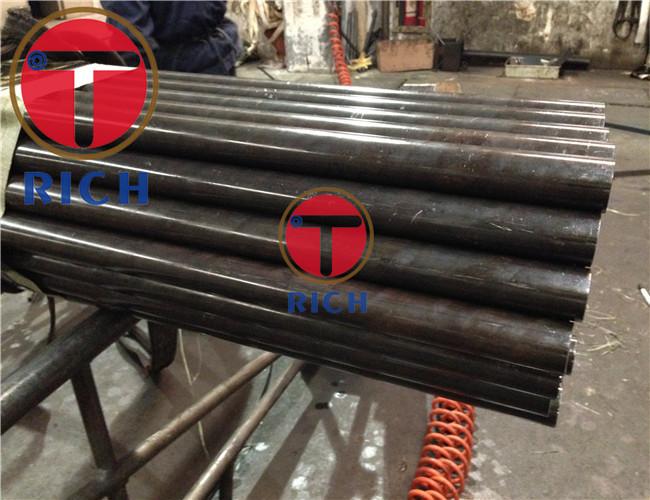

Astm A106 Seamless Metal Tubes , Black Painted Carbon Seamless Steel Pipe
ASTM A106 Seamless Carbon Steel Pipe for High-Temperature Service
This covers seamless carbon steel pipe forhigh-temperature service in NPS !/8 to NPS 48 [DN 6 ItoDN 1200] inclusive, with nominal (average) wallthickness as given in ASME B 36.10M. It shall be permissibleto furnish pipe having other dimensions provided such pipecomplies with all other requirements of this specification. Pipeordered under this specification shall be suitable for bending,flanging, and similar forming operations, and for welding.When the steel is to be welded, it is presupposed that a weldingprocedure suitable to the grade of steel and intended use Orservice will be utilized.
Size: Outer Diameter: 6-1000 mm,Wall Thickness: 1- 80 mm,Length :1-12m or as your request
Application:High-Temperature Service
Material:10#.20#.16Mn.A106(B,C).ST35-ST52
Manufacture :Tubes shall be made by the seamless process and shall be cold drawn.
Heat Treatment:
1)Cold-drawn tubes shall be heat treated after the finalcold-draw pass at a temperature of 1 200F [640C] or higher toensure ductility satis factory for rolling into tube sheets and tomeet mechanical properties as specified.
2)If stress -relief anneal of the U-bends is specified, theanneal shall consist of heating the bent portion within a rangeof 1100 to 1200F [585 to 640C].
Outside diameter and wall thickness allow deviation mm
| sort code | Manufacturing method | Steel tube size | Allowable deviation | |
| WHR (WHEX) | Hot rolled(extruded)steel tube | OD | all | ±1%Dor±0.50(choose the bigger) |
| WT | ≤20 | -15% +0.45 -10%S or –0.30 (choose the bigger) | ||
| ＞20 | ±10%S | |||
| WHE | Heat expand steel tube | OD | all | ±1%D |
| WT | all | ±15%S | ||
| WCD (WCR) | Cold drawn(rolled) steel tube | OD | ≤30 | ±0.20 |
| 30＜D≤50 | ±0.30 | |||
| ＞50 | ±0.8%D | |||
| WT | 1.5≤S≤3 | +12.5% -10% S | ||
| ＞3 | ±10%S | |||
Bending of steel tube per meter
| OD/mm | Bending per meter(mm/m) |
| ≤15 | ≤1.5 |
| ＞15~30 | ≤2.0 |
| ＞30 or D≥351 | ≤3.0 |
The length of the steel tube bending should be not more than 1.5% of the steel tube length
1)ASTM Standards:
A530/A530M Specification for General Requirements for Specialized Carbon and Alloy Steel Pipe
E213 Practice for Ultrasonic Testing of Metal Pipe and Tubing
E309 Practice for Eddy-Current Examination of Steel Tubu-lar Products Using Magnetic Saturation
E381 Method of Macroetch Testing Steel Bars, Billets,Blooms, and Forgings
E570 Practice for Flux Leakage Examination of Ferromag-netic Steel Tubular Products
ASME B 36. 10M Welded and Seamless Wrought Steel Pipet*2.3 Military Standards:
MIL-STD- l29 Marking for Shipment and Storage
MIL-STD- l63 Steel Mill Products, Preparation for Ship-ment andStorage2.4 Federal Standard:
Fed. Std. No. 123 Marking for Shipments (Civil Agencies)Fed. Std. No.183 Continuous Identification Marking of Iron
and Steel Products2.5 Other Standards:
SSPC-SP 6 Surface Preparation Specification No. 6
