Wrought Austenitic Seamless Tube Manufacturing Stainless Steel Astm A403
| Product Name | TORICH ASTM A403 Wrought Austenitic Stainless Steel Piping Fitting |
| Brand | TORICH |
| Standard | ASTM A403 |
| Reference Standard | A351/A351M,A743/A743M,A960/A960M,E112,E165,ASME B16.9,MSS SP-25 etc |
| Grade | WPXM-19, WP304, WP304L, WP309, WP310S, WP316, WP316L etc |
| Type | Seamless/Welded |
| Test | Hydrostatic Test |
| Used | Pressure Piping application |
Chemical Requirements
| Grade | C | Mn | P | S | Si | Ni | Cr | Mo | Ti N |
| WPXM-19 | 0.06 | 4.0-6.0 | 0.045 | 0.030 | 1.00 | 11.5-13.5 | 20.5-23.5 | 1.50-3.00 | --- 0.20-0.40 |
| WP304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 8.0-11.0 | 18.0-20.0 | --- | --- --- |
| WP304L | 0.030 | 2.00 | 0.045 | 0.030 | 1.00 | 8.0-12.0 | 18.0-20.0 | --- | --- --- |
| WP309 | 0.20 | 2.00 | 0.045 | 0.030 | 1.00 | 12.5-15.0 | 22.0-24.0 | --- | --- --- |
| WP310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 19.0-22.0 | 24.0-26.0 | --- | --- --- |
| WP316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 10.0-14.0 | 16.0-18.0 | 2.00-3.00 | --- --- |
| WP316L | 0.030 | 2.00 | 0.045 | 0.030 | 1.00 | 10.0-14.0 | 16.0-18.0 | 2.00-3.00 | --- --- |
Tensile Requirement
| Grade | Yield Strength, min, ksi [MPa] | Tensile Strength, min, ksi [MPa] |
| 304,304LN,304H,309,310,316,316LN316H,317 317L,321,321H,347,347H,348,348H,S31725 | 30 [205] | 75 [515] |
| 304L,316L | 25 [170] | 70 [485] |
| 304N,316N,S31726 | 35 [240] | 80 [550] |
| XM-19 | 55 [380] | 100 [690] |
| S31254 | 44 [300] | 94 [650]-119[820] |
| S33228 | 27 [185] | 73 [500] |
| S34565 | 60 [415] | 115 [795] |
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Products Show

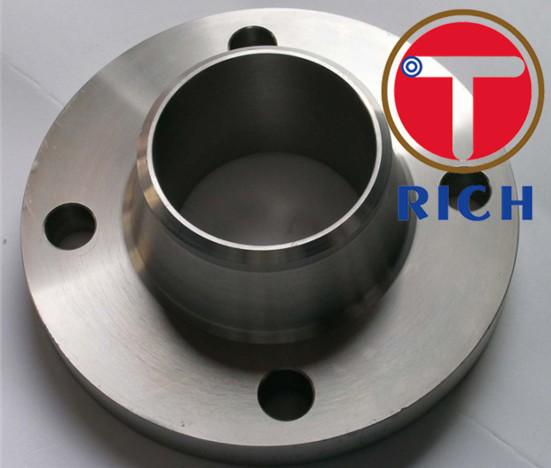

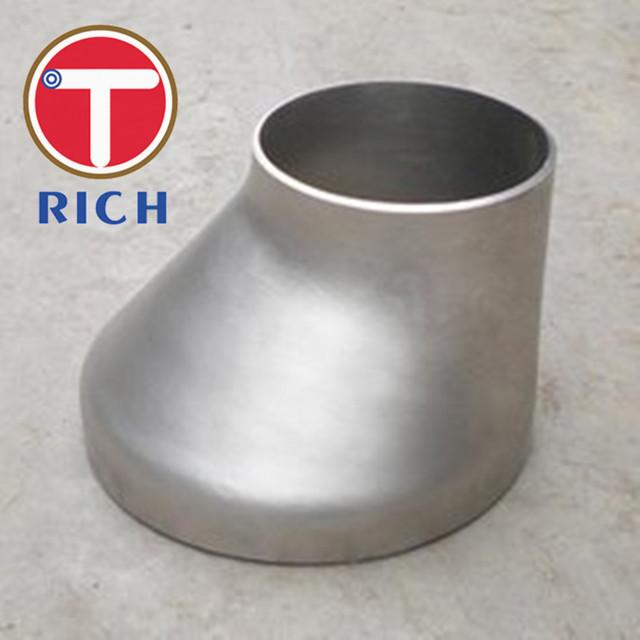

Forged Tube Machining Weld Neck Flange Torich Welded Tube Machining Ecc Red Stainless
For Machinery Parts ANSI B16.5 DN15 - DN1200 Steel Gb/t12459 Dn15 - Dn1200
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
