10x0.1 Mm 304 Stainless Steel Capillary Tube ASTM A270 Seamless Type
| Standard | ASTM A270 |
| Matrial | 210, 304, 304L, 316, 316L etc |
| Size | OD: 0.8-30mm WT: 0.08-5mm Length: According to Customer's Requirement |
| Applications | For Medical equipment, industrial use, etc |
| Manufacture | Tube stamping,bending, telescoping, swaging, flaring, etc |
| Surface Condition | Polishing, Anodizing, Sand blasting, Power plated, Brass nickel plated, etc |
| Test and Inspection | Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test |
| Size, Outside Diameter, in. (mm) | Permissible Variations in Outside Diameter, in. (mm) | Permissible Variations in Cut Length, in. (mm) | ||
| Over | Under | Over | Under | |
| 1.00(25.4)and under | 0.005 (0.13) | 0.005 (0.13) | 1/8 (3.2) | 0 |
| 1.1/2(38.1) to 2(50.8) | 0.008 (0.20) | 0.008 (0.20) | 1/8 (3.2) | 0 |
| 2.1/2(63.5) to 3(76.8) | 0.010 (0.25) | 0.010 (0.25) | 1/8 (3.2) | 0 |
| Over 3(76.2) to 4(101.6), excl. | 0.015 (0.38) | 0.015 (0.38) | 1/8 (3.2) | 0 |
| Over 4(101.6) to 5.1/2(139.7), excl. | 0.015 (0.38) | 0.015 (0.38) | 3/16 (4.8) | 0 |
| 5.1/2(139.7) to 8(203.2), excl. | 0.030 (0.76) | 0.030 (0.76) | 3/16 (4.8) | 0 |
| 8(203.2) to (304.8) | 0.050 (1.27) | 0.050 (1.27) | 3/16 (4.8) | 0 |
Tensile and Hardness Requirements
| Grade | UNS Designation | Tensile Strength min, ksi (MPa) | Yield Strength min, ksi (MPa) | Elongation in 2 in. min, % | Rockwell Hardness Number, max |
| TP304 | S30400 | 75 (515) | 30 (205) | 35 | B90 |
| TP304L | S30403 | 70 (485) | 25 (170) | 35 | B90 |
| TP316 | S31600 | 75 (515) | 30 (205) | 35 | B90 |
| TP316L | S31603 | 70 (485) | 25 (170) | 35 | B90 |
| | S31803 | 90 (620) | 65 ( 450) | 25 | C30.5 |
| 2205 | S32205 | 95 (655) | 70 (480) | 25 | C30.5 |
| 2507 | S32750 | 116 (800) | 80 (550) | 15 | C32 |

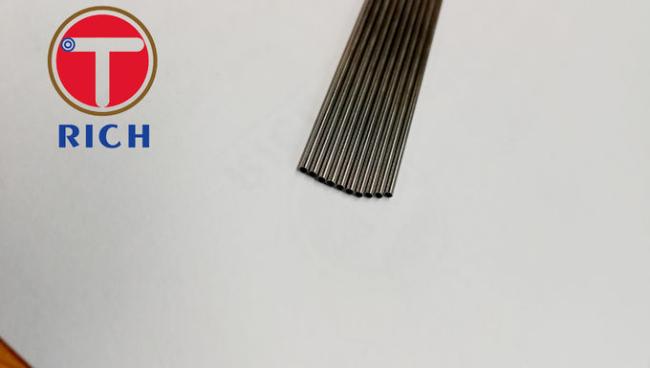

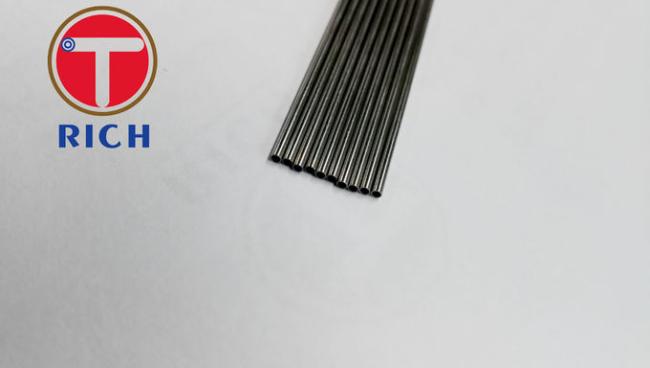

Product Show
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking

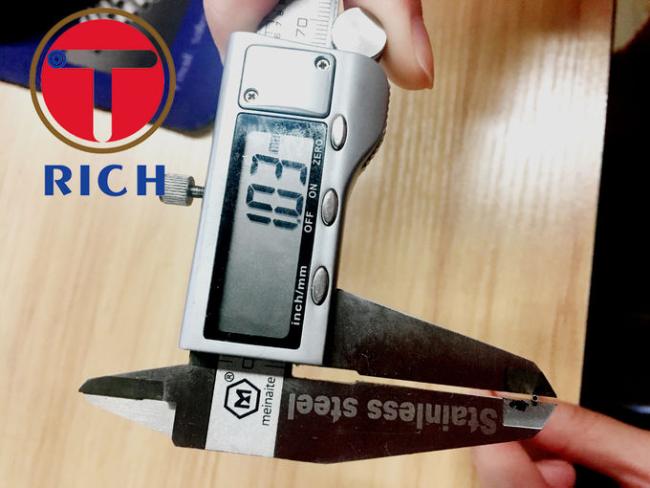

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
TORICH ASTM A270 10x0.1 mm Stainless Steel Tube 304 Capillary Steel Tube for Medical use
