EN 10305 Steel Hydraulic Tubing Sch80 Chrome Plated 30 - 250 Mm Outer Diameter

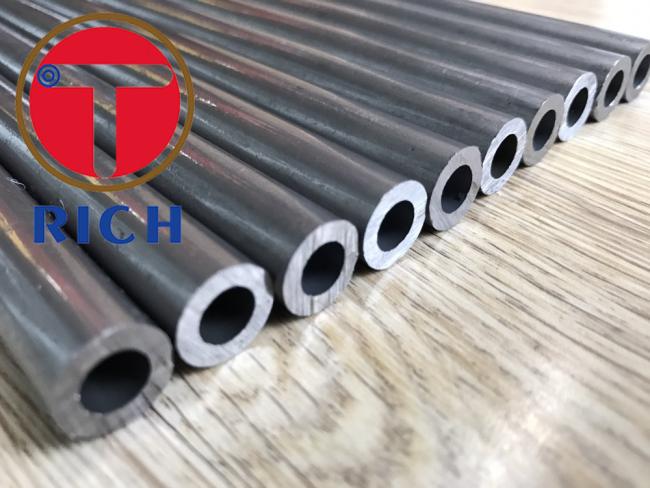

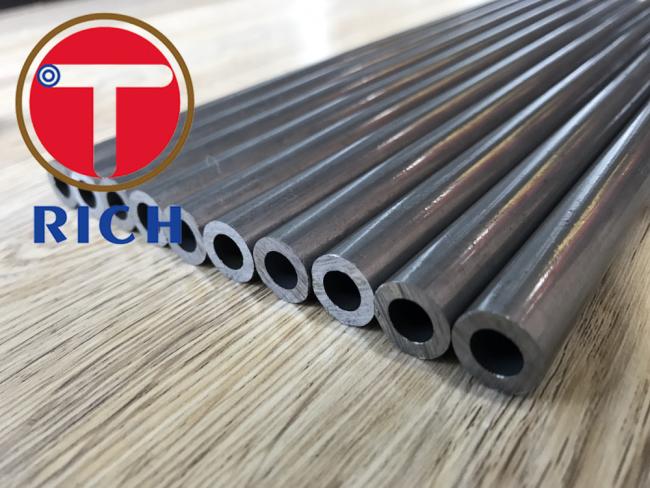

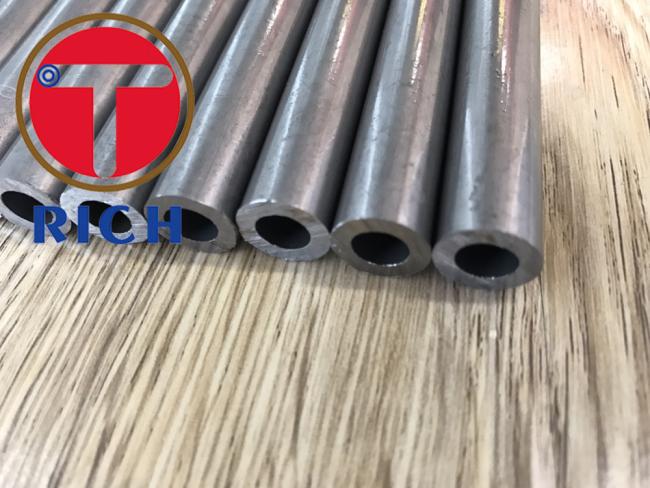

EN 10305 Cold Drawn sch80 Chrome Plated Seamless Steel Tube
| Production | EN 10305 cold drawn sch80 chromed plated seamless steel tube |
| Standard | DIN2391, DIN2445, EN10305, GB/T 3639, GB 8713 |
| Inner Diameter | 30mm~250mm |
| Wall Thickness | 0.5mm~18mm |
| Material | 10#~45#,16Mn,Q195~Q345,ST35~ST52 |
| Length | as customers required |
| Surface treatment | As customers required |
| Package | 1. bundle packing 2. marking as per customer's requests 3. paint on the pipe as per customer request 4. pipe caps as customer reques |
| Min Order Quantity | According to customer's requirement |
| Payment terms | L/C, T/T |
| Contact | If you have any questions, please feel free to contact me. |
| Delivery conditions | 1. NBK(+N) after cold forming, eventually above phase transition point, in a protective atmosphere of annealing oxidation medium 2. GBK(+A) after cold forming, annealing in non oxidizing medium protective gas 3. BK(+C) the final heat treatment after cold forming, therefore small steel pipe plastic, the plastic degree does not guarantee 4. BKW(+LC) after final heat treatment, a tiny cold drawing deformation, continue again when machining steel pipe allowed inside certain limits cold deformation(bending, flaring) 5. BKS(+SR) have a stress relief after cold forming, heat treatment, steel pipe can be carried out within a certain limit in the appropriate processing again |
| OD | GB/T3639(GB8713) | DIN2391(EN10305) | Our Tolerence | Best Quality |
| 4-30mm | ±0.10mm | ±0.08mm | ±0.05mm | ±0.02mm |
| 31-40mm | ±0.15mm | ±0.15mm | ±0.05mm | ±0.03mm |
| 41-50mm | ±0.20mm | ±0.20mm | ±0.05mm | ±0.03mm |
| 51-60mm | ±0.25mm | ±0.25mm | ±0.08mm | ±0.03mm |
| 61-70mm | ±0.30mm | ±0.30mm | ±0.10mm | ±0.05mm |
| 71-160mm | ±0.30mm | ±0.30mm | ±0.10mm | ±0.05mm |
| Tolerance in WT | ±0.12mm | ±0.10mm | ±0.05mm | ±0.03mm |
| Process | Diameter | Length | Precision | Inner Hole Roughness |
| Cold Rolled | 30-100mm | ≤12 m | H8-H10 | 0.4-1.6 |
| Cold Draw | 30-250mm | ≤12 m | H8-H10 | 0.8-1.6 |
| Honing | 40-500mm | ≤12 m | H8-H9 | 0.4-0.8 |
| Rolling | 40-400mm | ≤7 m | H8 | 0.4 |
| Inner Diameter | H8 | H9 | H10 | |
| 30mm | ±0.033 | ±0.052 | ±0.084 | 5-30mm |
| 30-50mm | ±0.039 | ±0.062 | ±0.100 | ±0.080 |
| 50-80mm | ±0.046 | ±0.074 | ±0.120 | |
| 80-120mm | ±0.054 | ±0.087 | ±0.140 | |
| 120-180mm | ±0.063 | ±0.100 | ±0.160 | |
| 180-250mm | ±0.072 | ±0.115 | ±0.185 | |
| 250-315mm | ±0.081 | ±0.130 | ±0.210 | |
| 315-400mm | ±0.089 | ±0.140 | ±0.230 |
