Triangle Lemon Special Steel Pipe For PTO Agricultural Drive Shaft from TORICH
Price:
negotiable
MOQ:
5 tons
Delivery Time:
20-45 days
Brand:
TORICH
Product Description

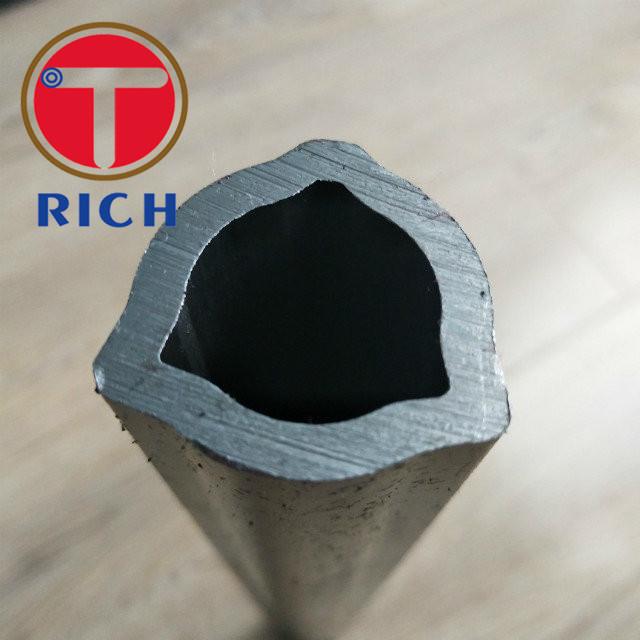

Triangle Lemon Special Steel Pipe For PTO Agricultural Drive Shaft from TORICH
Product information:
Material: SAE1010 , SAE1020 , SAE1035 , SAE1045 , ST37.0 , ST44 , ST52 , E235 , E355
Grade: BS, JIS, GB, DIN, ASTM, API,
Shape: Lemon
Wall thickness: 0.5-50mm
Length: up to 12m, or according to customer's requirement.
Outer diameter: Round: 5-420mm
Diameter and wall thickness could be at customer's request.
Technology: Cold Draw/Cold Rolled
Surface treatment: painted,galvanized,or oiled according to customer's requirement
Application: Lighting,furniture,medical equipment
Place of origin: China
Application Mechanical structure, Carbon pressure machinery etc.
| Tolerance for the width | |||
| Size(mm) | Tolerance(mm) | ||
| General | High Grade | ||
| Width A / B | ≤30 | ±0.30 | ±0.20 |
| >30-50 | ±0.40 | ±0.30 | |
| >50-75 | ±0.80%A | ±0.70%A | |
| ±0.80%B | ±0.70%B | ||
| >75 | ±1%A | ±0.8%A | |
| ±1%B | ±0.8%B | ||
| Tolerance for wall thickness | |||
| Size(mm) | Tolerance(mm) | ||
| General | High Grade | ||
| Width A / B | ≤1.0 | ±0.18 | ±0.12 |
| >1.0-3.0 | +15% WT | +12.5% WT | |
| -10% WT | -10% WT | ||
| >3.0 | +12.5% WT | ±10% WT | |
| -10% WT | |||
