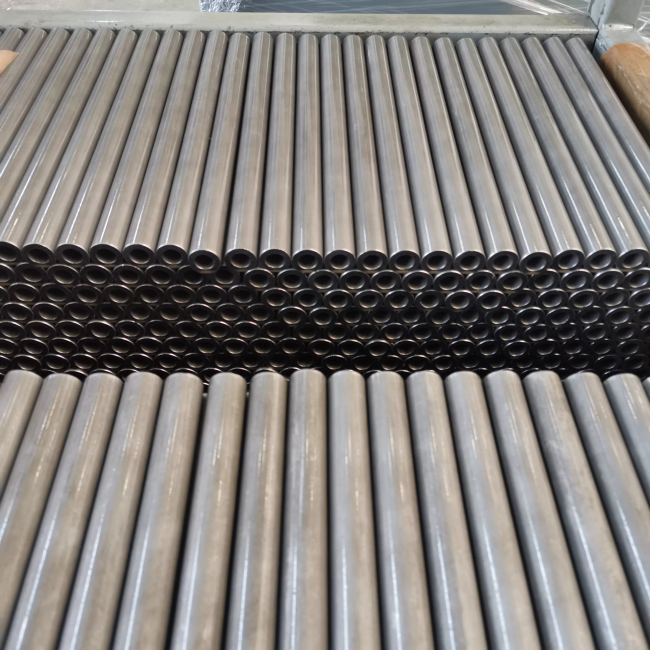

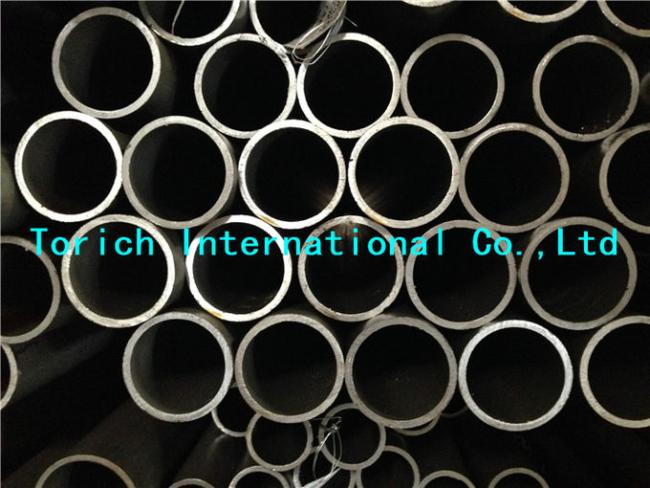

Cold Drawn Seamless Precision Steel Tube GOST9567 for Automotive

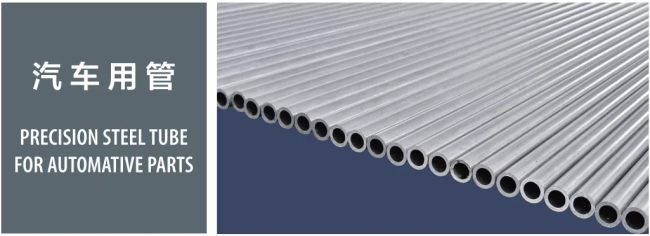

Cold Drawn Seamless Precision Steel Tube GOST9567 for Automative Parts
TORICH is professional to manufacture Cold Drawn Seamless Precision Steel Tube accordingto GOST9567 which covers both
seamless hot-finished mechanical tubing and seamless cold-finished mechanical tubing The tubes can be furnished
in the following shapes, as specified by the purchaser: round, square, rectangular, and special sections.
| Standard | GOST9567 Precision steel tubes |
| Material | 10, 20, 35, 45, 40X, 30ХГСА |
| Size | WT: 1-15mm; OD: 6-168mm; Length: max 12000mm |
| Manufacturer | Pipes shall be made by the Cold Drawn seamless process. |
| Applications | For Automobile, Machinery Engineering, Autoparts etc. |
| Test | Tension Test, Flaring Test, Flange Test, |
Chemical Composition
| Steel Grade | C | Si | Mn | Cr | Ni | Mo | S | P | Cu |
| 10 | 0.07-0.14 | 0.17-0.37 | 0.35-0.65 | 0.15 | 0.3 | - | - | - | - |
| 20 | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.25 | 0.25 | - | 0.03 | 0.025 | 0.3 |
| 35 | 0.32-0.40 | 0.17-0.37 | 0.50-0.80 | 0.25 | 0.3 | - | 0.04 | 0.035 | 0.3 |
| 45 | 0.42-0.45 | 0.17-0.37 | 0.50-0.80 | 0.25 | - | - | - | - | - |
| 40X | 0.36-0.44 | 0.17-0.37 | 0.50-0.80 | 0.80-1.10 | 0.3 | - | 0.035 | 0.035 | 0.3 |
| 30ХГСА | 0.28-0.34 | 0.90-1.20 | 0.80-1.10 | 0.80-1.10 | 0.3 | - | 0.005 | 0.25 | - |
Mechanical Properties
| Steel Grade | Tensile strength, N/mm2 (min) | Yield strength, N/mm 2 (min) | Elongation, %(min) |
| 10 | 343 | 206 | 24 |
| 20 | 412 | 245 | 21 |
| 35 | 510 | 294 | 17 |
| 45 | 589 | 323 | 14 |
| 40X | 618 | - | 14 |
| 30ХГСА | 491 | - | 18 |

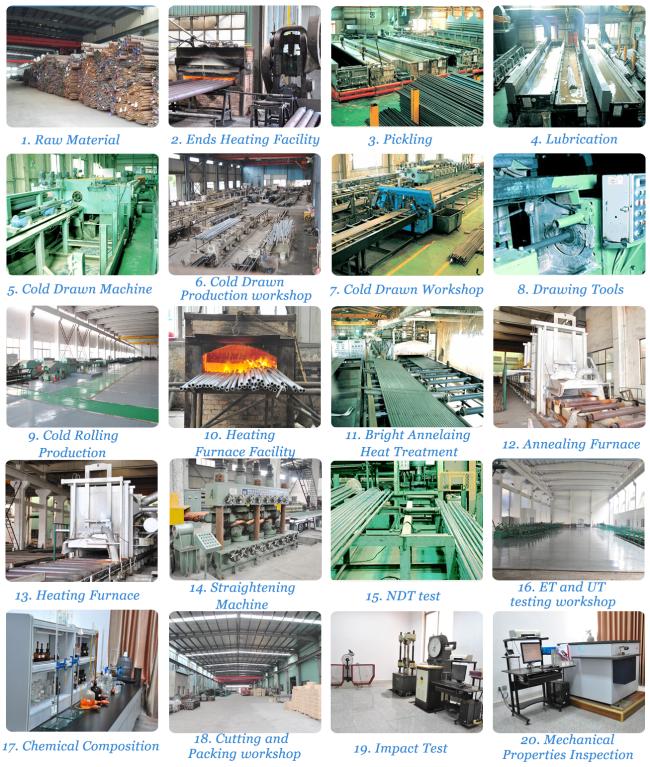

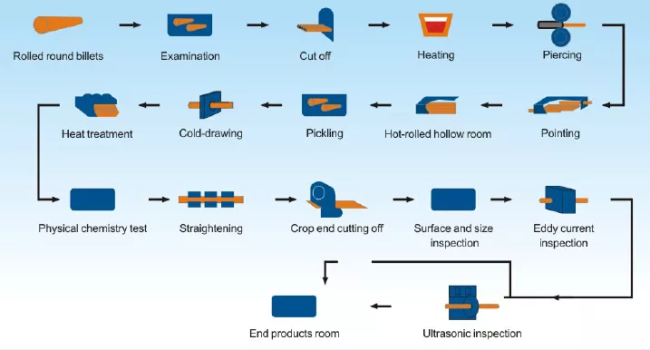

QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
FAQ
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
