Precision steel tube Medical industry Stainless Steel Tube 304 316 capillary stainless tube 0.1mm
Price:
negotiable
MOQ:
5 Kg
Delivery Time:
1-2 Weeks
Brand:
TORICH
Product Description

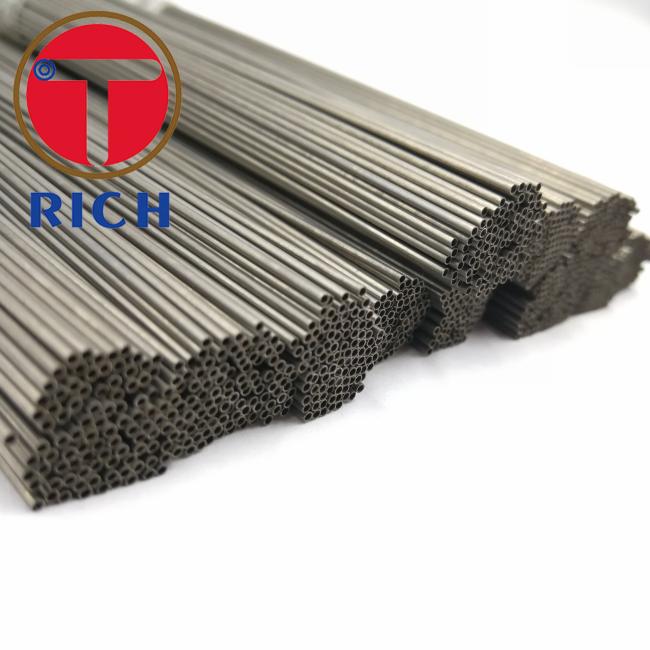

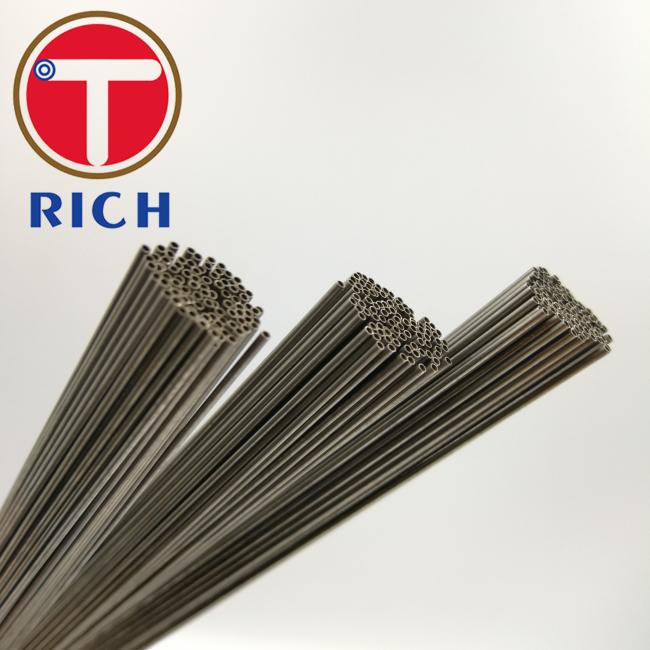

Outer Diameter 0.1mm--8mm seamless stainless steel capillary tubes for handrails
|
Name
| Stainless steel capillary pipes | |||||
|
Standard
| ASTM A554 | |||||
|
Material Grade
| 201/202/304/316 | |||||
|
Outer Diameter
| 0.1mm--8mm | |||||
|
Thickness
| 0.05mm - 2.1mm | |||||
|
Length
| 2440mm, 3050mm, 5800mm, 6000mm, 6100mm or as customer request | |||||
|
Tolerance |
a) Outer Diameter: +/- 0.2mm
| |||||
|
b) Thickness: +/- 10% OR as customer request
| ||||||
|
c) Length: +/- 10mm
| ||||||
| Surface |
Satin / Hairline :180#, 320#
Polish : 400# ,600# ,800# or Mirror surface
| |||||
|
Application
| Processed into railings, handrails, doors and Windows | |||||
|
PACKING
| Plastic bag / woven packing(please send details packing to us if you have other requirements ) | |||||
| Chemical composition |
Element
| 201 | 202 | 304 | 316 | S31803 | S32750 | |
|
C
| ≤0.15 | ≤0.15 | ≤0.08 | ≤0.08 | ≤0.030 | ≤0.030 | ||
|
Si
| ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤0.80 | ||
|
Mn
| 5.5-7.5 | 7.5-10.0 | ≤2.00 | ≤2.00 | ≤2.00 | ≤1.20 | ||
|
P
| ≤0.060 | ≤0.060 | ≤0.045 | ≤0.045 | ≤0.030 | ≤0.035 | ||
|
S
| ≤0.030 | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.020 | ≤0.020 | ||
|
Cr
| 16-18 | 17-19 | 18-20 | 16-18 | 21-23 | 21-23 | ||
|
Ni
| 3.5-5.5 | 4.0-6.0 | 42958 | 43022 | 4.5-6.5 | 6.0-8.0 | ||
|
Mo
| 2.0-3.0 | 2.5-3.5 | 3.0-5.0 | |||||
| N | ≤0.25 | ≤0.25 | 0.08-0.2 | 0.24-0.32 | ||||
|
Cu
| ≤0.50 | |||||||
| Mechanical properties |
Material Item
| 201 | 202 | 304 | 316 | S31803 | S32750 | |
|
Tensile Strength (MPa)
| ≥655 | ≥620 | ≥515 | ≥515 | ≥620 | ≥800 | ||
|
Yield Strength (MPa)
| ≥260 | ≥310 | ≥205 | ≥205 | ≥450 | ≥550 | ||
|
Elongation (%)
| ≥35 | ≥35 | ≥35 | ≥35 | ≥25 | ≥15 | ||
|
Hardness (HV)
| ≤230 | ≤230 | ≤200 | ≤200 | ≤303 | ≤323 | ||
