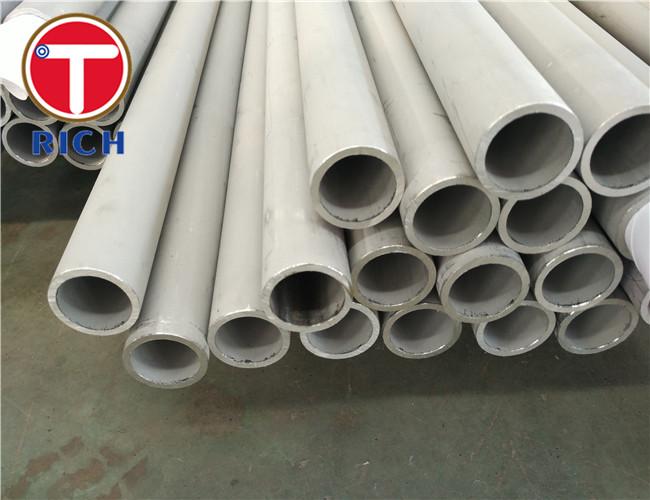

Heat Exchanger Stainless Steel Precision Tubing / Stainless Steel Boiler Tubes

1.Materials: 304,304L,316L,316

2.Surface Finish: Pickled

3.Application:

a) Superheater


the high/super-high pressure power boiler,
the superheating steam tube,
the boiling water pipe,
the superheating tube for locomotive boiler.

b) Evaporator

c) Pressure and heat transmission

d) Tube heat exchanger, tube bundle heat exchanger

e) Boiler heat exchangers

f) Condenser

4.Thickness : 0.3 - 4mm


5.Outer Diameter : 8-219mm


6.Length : 6M or customized

7. Process method: cold rolled

8. Surface finish: annealed/ pickling

9. Material: TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S

10. Standards: ASTM A249, ASTM A269, ASME SA249

11. Certification: ISO 9001:2015, AD 2000-W0, PED 2014/68/EU

12. Packing: Standard export packing( in bundles or seaworthy wooden cases)


13. Delivery date: 30 days after receiving the deposit
