STB340 Carbon Steel Heat Exchanger Tubes ASTM A192 ASTM A179 Annealed Surface
TORICH ASTM A192 ASTM A179 STB340 Carbon Seamless Steel Boiler Pipe
Applications:
for Boilers,Superheaters,
Heat-Exchangers,
High-pressure Boilers,
Steam Boilers
Cold Condensers and High-Pressure Services,
High-Temperature Services for Boiler Constructions
Manufacture: Tubes are manufactured by seamless process and both hot finished and cold finished are applicable.
High pressure a192 a179 seamless carbon boiler tube for sale
a192 a179 seamless boiler tube
Heat treatment:Hot finished tubes need not be heat treated.Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher
Steel grade SA192 Chemical Composition & Mechanical properties
| C | Mn | P | S | Si | Tensile Strength | Yeild point | Elongation |
| 0.06-0.18 | 0.27-0.63 | 0.035Max | 0.035Max | 0.25Max | min ksi[Mpa] 47[325] | min ksi[Mpa] 26[180] | ≥35% |
Hardness
| Brinell Hardness | Rockwell Hardness Number |
| WT≥0.200in(5.1mm) | WT<0.200in(5.1mm) |
| 137HRB | 77HRB |

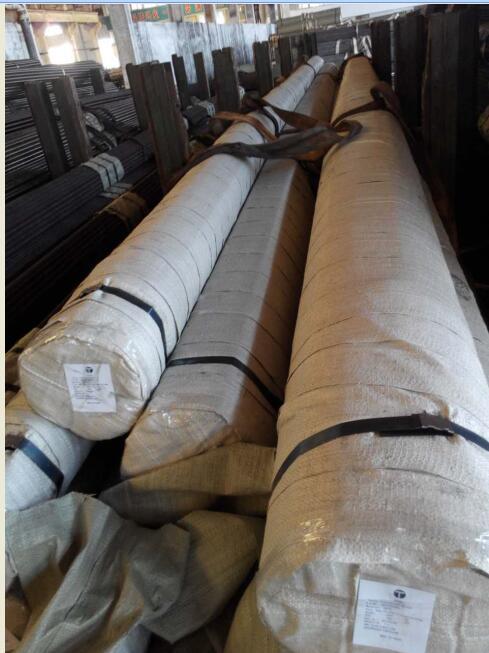

Packing: Boiler pipe packed in bundles, in wooven bags.
