Cold Drawn Welded Drawn Over Mandrel Tube ASTM A513 1026 For Hydraulic Cylinder
Price:
900-1200 USD/ton
MOQ:
5 tons
Delivery Time:
30-45 days after order confirmed
Brand:
Torich
Product Description
Products Description:
4.7mm 6.6mm 0.185in 0.26in Precision SAE 1020 ASTM A513 DOM tubing
DOM Steel Pipe
Steel Grade/Steel Material:
SAE1020 1020 Q235B etc carbon steel
Delivery Condition:
BK, BKW, BKS, GBK, NBK
Size Range:
OD: 4.0-420mm
WT:0.5-50mm
Length: max 12000mm
Our regularproduction size
125mm 139mm OD
Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE

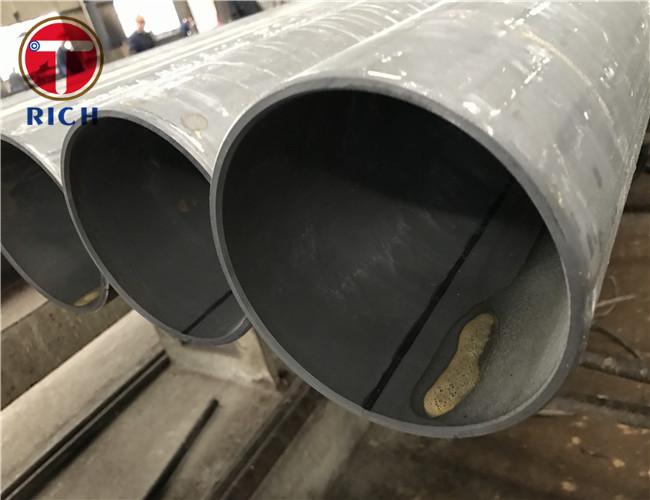

Hydraulic cylinder using 1026 DOM cold drawn welded CDW pipe
Production Processs:
ERW tube and Cold Drawing or Cold Rolling Production
| Steel grade | Minimum values for the delivery conditionab | ||||||||||||
| +CC | +LCC | +SR | +Ad | +N | |||||||||
| steel name | steel number | Rm MPa | A % | Rm MPa | A % | Rm Mpa | ReH MPa | A % | Rm MPa | A % | Rm MPa | ReHC MPa | A % |
| E155 | 1.0033 | 400 | 6 | 350 | 10 | 350 | 245 | 18 | 260 | 28 | 270 to 410 | 155 | 28 |
| E195 | 1.0034 | 420 | 6 | 370 | 10 | 370 | 260 | 18 | 290 | 28 | 300 to 440 | 195 | 28 |
| E235 | 1.0908 | 490 | 6 | 440 | 10 | 440 | 325 | 14 | 315 | 25 | 340 to 480 | 235 | 25 |
| E275 | 1.0225 | 560 | 5 | 510 | 8 | 510 | 375 | 12 | 390 | 21 | 410 to 550 | 275 | 21 |
| E355 | 1.0580 | 640 | 4 | 590 | 6 | 590 | 435 | 10 | 450 | 22 | 490 to 630 | 355 | 22 |
| a. Rm: tensile strength ; ReH: upper yield strength (but see 11.1); A: elongation. For symbols for the delivery condition see Table 1. | |||||||||||||
| b. 1 Mpa = 1 N/mm2 | |||||||||||||
| c. Depending on the degree of cold work in the finishing pass the yield strength may nearly be as high as the tensile strengths. For calculation purposes the following relations are recommended: | |||||||||||||
| —— For delivery condition +C: ReH ≥0.8 Rm | |||||||||||||
| —— For delivery condition +LC: ReH ≥0.7 Rm | |||||||||||||
| d. For calculation purposes the following relations is recommended: ReH ≥0.5 Rm | |||||||||||||
| e. For tubes with outside diameter ≤ 30 mm and wall thickness≤ 3mm, the ReH minimum values are 10 Mpa lower than the values given in this Table. | |||||||||||||

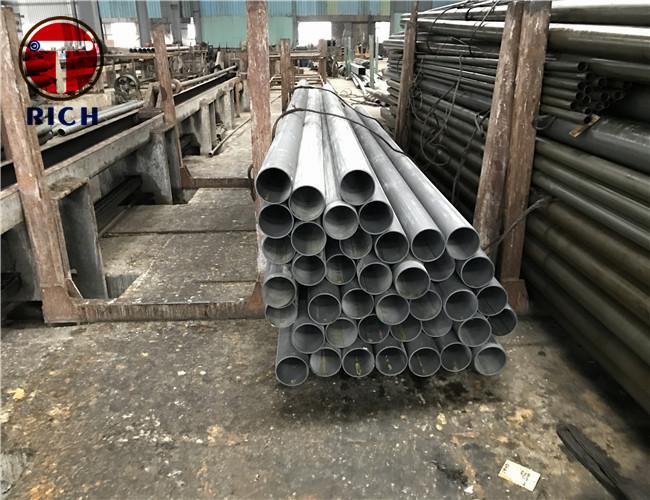

Production Steel Tube:
Eddy Current Test and Ultrasonic Test:
Packing:
