Seamless Special Steel Pipe Alloy Steel Tube For Boiler / Heat Exchanger
MOQ:
8 tons
Delivery Time:
5-8 week days
Brand:
Torich
Product Description
Key Specifications/Special Features:

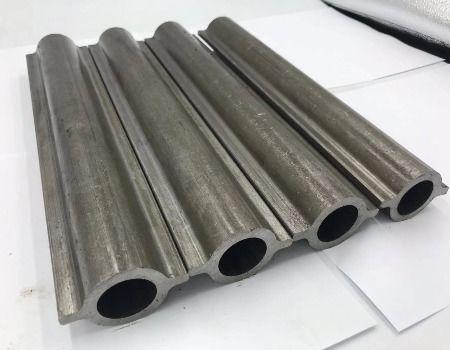

OD57*WT5mm Seamless Alloy Steel Shaped Tube for Boiler&Heat Exchanger from TORICH,China Manufacturer
Applications:
for Boilers,Superheaters,
Heat-Exchangers,
High-pressure Boilers,
Steam Boilers
Cold Condensers and High-Pressure Services,
High-Temperature Services for Boiler Constructions
Manufacture:Tubes are manufactured by seamless process and both hot finished and cold finished are applicable.
Heat treatment:Hot finished tubes need not be heat treated.Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher
EN 10216,ASME SA179, SA192, SA210 Grade A1, SA210 Grade C, BS3059 Grade 320, 360
Steel grade 16Mo3 Chemical Composition & Mechanical properties
C Mn P S Si Cr Mo
0.12-0.2 0.4-0.9 0.025max 0.02max 0.35max 0.3max 0.25-0.35
Tensile Strength Yeild point Elongation
450-600Mpa 280Mpa min 22% min
Applications:
for Boilers,Superheaters,
Heat-Exchangers,
High-pressure Boilers,
Steam Boilers
Cold Condensers and High-Pressure Services,
High-Temperature Services for Boiler Constructions
Manufacture:Tubes are manufactured by seamless process and both hot finished and cold finished are applicable.
Heat treatment:Hot finished tubes need not be heat treated.Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher
EN 10216,ASME SA179, SA192, SA210 Grade A1, SA210 Grade C, BS3059 Grade 320, 360
Steel grade 16Mo3 Chemical Composition & Mechanical properties
C Mn P S Si Cr Mo
0.12-0.2 0.4-0.9 0.025max 0.02max 0.35max 0.3max 0.25-0.35
Tensile Strength Yeild point Elongation
450-600Mpa 280Mpa min 22% min
