Torich En10217-7 Round Stainless Steel Tube 400mm Diameter Welded ISO CE
Torich En10217-7 400mm Diameter Welded 6 Round Stainless Steel Pipe
Introduction:
| Name | 400mm Diameter 6 Stainless Steel Pipe |
| Standard | En10217-7 |
| Diameter | 400mm |
| Type | Stainless steel pipe |
| Technics | Welded |
| Usage | Pressure purposes |
| Tolerance | ±5% |
| Certificate | ISO,CE |
| Terms of delivery | FOB,CIF,CPT,CFR |
| Terms of payment | L/C,T/T |
| Package | Packed in hexagonal in boxes |
Chemical composition
| No. | Unified digital code | New steel grade | Old steel grade | Chemical composition | |||||||
| C | Si | Mn | P | S | Ni | Cr | N | ||||
| 1 | S35350 | 12Cr17Mn6Ni5N | 1Cr17Mn6Ni5N | ≤0.15 | ≤1.00 | 5.50~7.50 | ≤0.050 | ≤0.030 | 3.50~5.50 | 16.00~18.00 | 0.05~0.25 |
| 2 | S35450 | 12Cr18Mn9Ni5N | 1Cr18Mn8Ni5N | ≤0.15 | ≤1.00 | 7.50~10.0 | ≤0.050 | ≤0.030 | 4.00~6.00 | 17.00~19.00 | 0.05~0.25 |
| 3 | S30210 | 12Cr18Ni9 | 1Cr18Ni9 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.00 | 17.00~19.00 | ≤0.10 |
| 4 | S30408 | 06Cr19Ni10 | 0Cr18Ni9 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~11.00 | 18.00~20.00 | - |
Mechanical property
| No. | Unified digital code | New steel grade | Old steel grade | Yield strength Rp0.2/MPa | Tensile Strength Rm/MPa | Elongation A/ % |
| ≥ | ||||||
| 1 | S35350 | 12Cr17MnNi5N | 1Cr17Mn6Ni5N | 245 | 520 | 25 |
| 2 | S35450 | 12Cr18Mn9Ni5N | 1Cr18Mn8Ni5N | 245 | 520 | |
| 3 | S30210 | 12Cr18Ni9 | 1Cr18Ni9 | 210 | 520 | 30 |
| 4 | S30408 | 06Cr19Ni10 | 0Cr18Ni9 | 210 | 520 | |
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

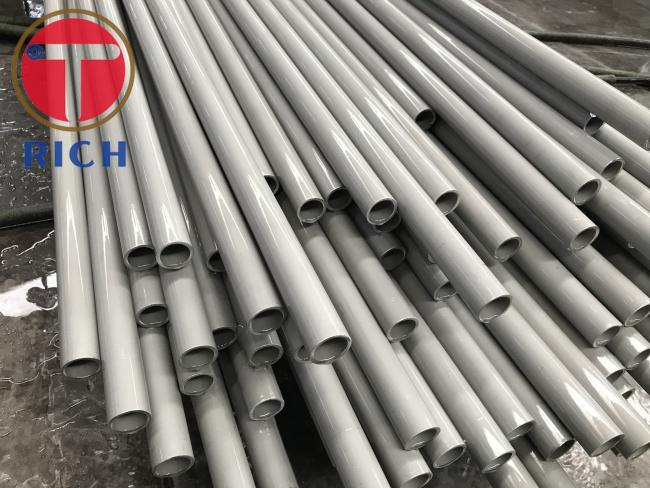

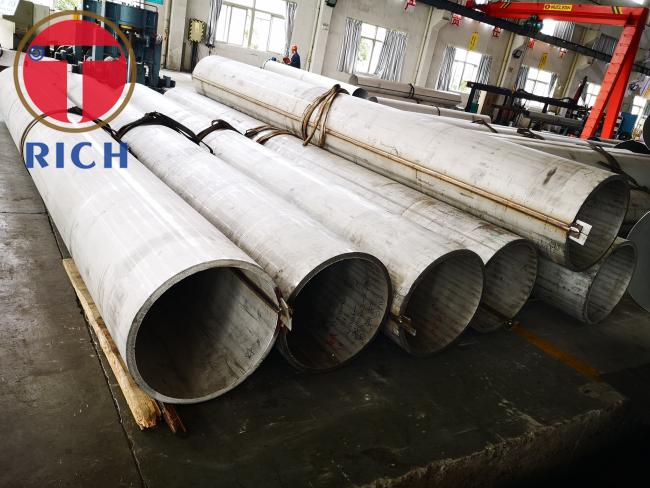

Product show:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:Do you have agent or distributor in our country?
A:We are recruiting area agent and distributor all over the world, welcome to send us your mail or call us for detail discussion.
Q:How is your production capability?
A:1.2000 tons monthly production capacity, 5000 tons monthly trading capability
2.Prompt and Timely shipment
Q:How to get the sample?
A:1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
