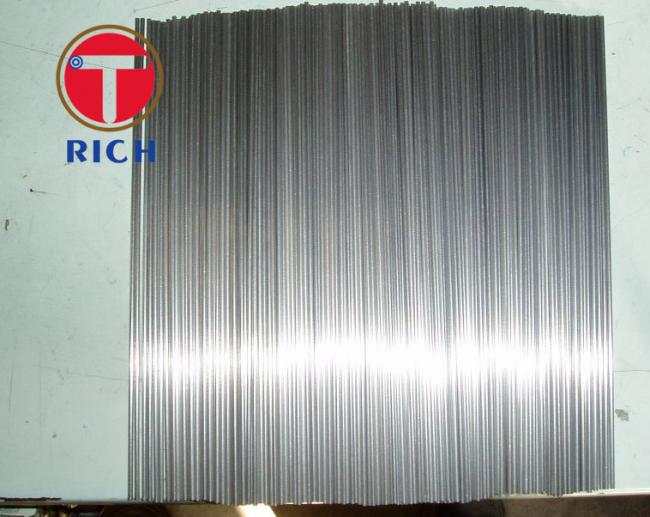

Round Stainless Steel Tube Welded Stainless Steel Capillary Tubes Polished Surface

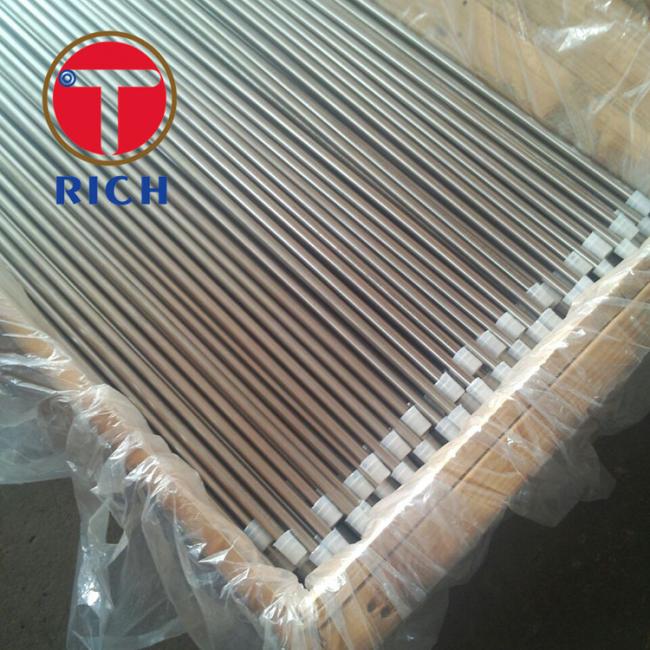

Medical Micro 201 304 316 Needle Welded Stainless Steel Capillary Tubes
Size: OD 0.8-10mm, WT0.08-0.8mm
Tolerance: Outer Diameter: +/- 0.02mm
Thickness: +/- 0.02mm OR as customer request
Surface:
1) Satin / Hairline :180#, 320#
2) Polish : 400# ,600# ,800# or Mirror surface
3) Pickling
Applications
1: Medical equipment industry, injection needle tube, puncture needle tube, medical industrial tube.
2: industrial electric heating tube, industrial oil tube
3: temperature sensor tube, sensor tube, barbecue tube, thermometer tube, thermometer tube, instrument tube,
thermometer stainless steel tube.
4: pen making pen, core tube, pen tube.
5: All kinds of electronic micro-tubes, optical fiber accessories, light mixer, small diameter stainless steel capillary
6: clock and watch industry, mother-to-child, raw ear pole, watch strap accessories, jewelry punch needle
7: all kinds of antenna tube, automobile tail antenna tube, tie rod antenna tube, stretch pointer, mobile phone stretch antenna tube,
micro-antenna tube, portable computer antenna Stainless steel antenna.
8: stainless steel pipes for laser engraving equipment.
9: pipes for fishing utensils, pipes for dropping fishing rods
10: pipes for various dietary industries, pipes for transporting materials
Capillary Tube Size:
| Seamless Welded Tubing (TYPE) |
Material | Min. Burst pressure (PSI) | Min. Collapse pressure (PSI) | Load at Min. 0.2% YS (IBS) | Load at Typical UTS (IBS) |
| 1/8" × 0.028" | 316L | 29,531 | 9,487 | 256 | 768
|
| 1/8" × 0.035" | 316L | 36,914 | 11,132 | 297 | 891 |
| 1/4" × 0.035" | 316L | 18,676 | 6,540 | 709 | 2,128 |
| 1/4" × 0.049" | 316L | 26,146 | 8,635 | 928 | 2,785 |
| 1/4" × 0.065" | 316L | 34,684 | 10,666 | 1,133 | 3,400 |
| 3/8" × 0.035" | 316L | 12,500 | 4,583 | 1,122 | 3,365 |
| 3/8" × 0.049" | 316L | 17,500 | 6,183 | 1,506 | 4,517 |
| 1/2" × 0.035" | 316L | 9,394 | 3,522 | 1,534 | 4,602 |
| 1/2" × 0.049" | 316L | 13,151 | 4,799 | 2,083 | 6,248 |
| 1/2" × 0.065" | 316L | 17,445 | 6,167 | 2,665 | 7,995 |
| 1/2" × 0.083" | 316L | 22,276 | 7,587 | 3,262 | 9,786 |
