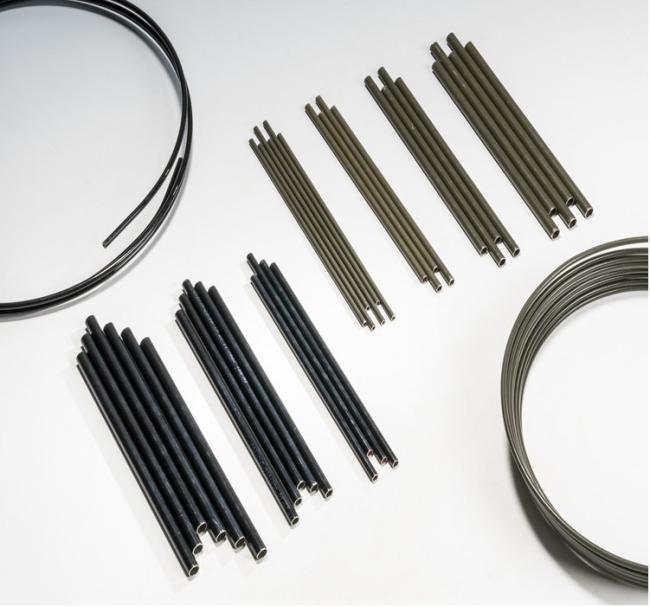

Automotive 10*0.7 ERW SAE J527 PVF Coating Bundy Tube
10*0.7 PVF Bundy Tube Automotive Steel Tubes
1. Standard
ASTM A254 Copper-brazed steel tubing
SAE J526 Welded low-carbon tubing
SAE J527 Brazed Double Wall Low-Carbon Steel Tubing
EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems
2. Steel Grade
BHG1, BHG2, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06
3. Heat Treatment
BK or NBK
4. Specification
| O D/ mm | 4 | 4.2 | 4.76 | 6 | 6.35 | 7.8 | 8 | 9.52 |
| W T | 0.5-1.0mm (0.5-0.7mm common WT) | |||||||
| Tolerance | ±0.05mm | |||||||
| Length | 180Kg/coil; 700-1000m/coil; per customer’s request | |||||||
5. Production Process
Tube welding– Cold drawing (reduce diameter)– Annealing in Protected Atmosphere— Cleaning-- Leakage detection– Zinc/Copper Plating– Keep pressure (Airtightness) – Packing
6. Surface Treatment
| Coating | Thickness | Salt spray test duration |
| Copper/White Zinc/Colour-Zinc | 8μm | 72h |
| PVF | 8μm+20μm | 1000-2000h |
| Military Green Zinc | 8μm | 180h |
| GALF | 8μm+20μm | 1000-2000h |
| Nylon | 8μm+40μm | 180h |
7. Packing: In coil, in wooden box with seaworthy packing
8. Application
1) Fluid carrying system for automobiles
2) Fluid carrying system for refrigerators
3) Wire condenser for chillers, showcase
4) Vending machine, ice machine etc.

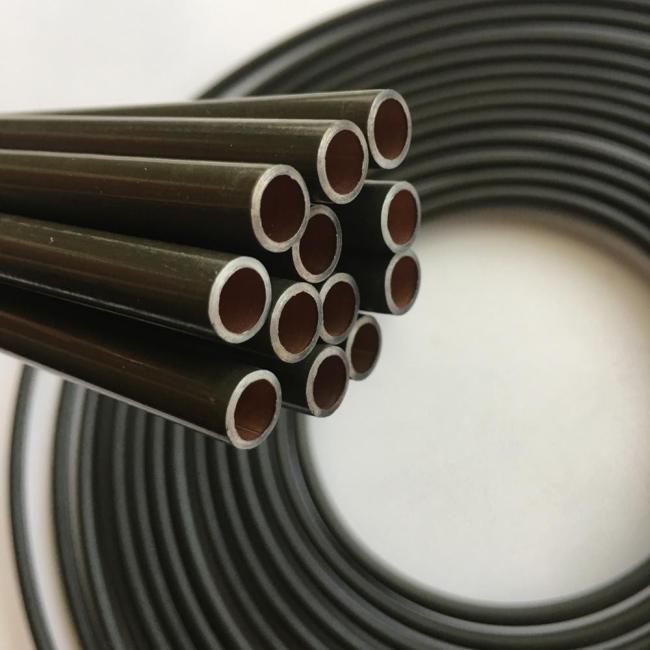

10*0.7 PVF Bundy Tube Automotive Steel Tubes
