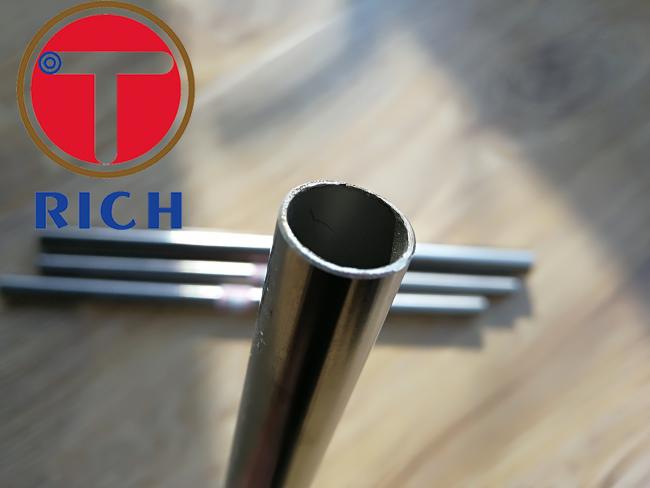

Incoloy 800 Incoloy 800h Incoloy 825 Tubing Inconel Pipe

Incoloy 800 Incoloy 800h Incoloy 825 Tubing Inconel Pipe

Incoloy 800 has good rupture and creep strength and excellent resistance to oxidation,

carburization and sulfidation attemperatures up to 816℃.

It also resists general corrosion by many aqueous media.

For Applications requiring higher stress rupture and creep properties,

especially at temperatures above 816℃, Incoloy 800H and 800HT are recommended.

Incoloy 800 is readilyformed, welded and machined.

Basic Information

Outer Diameter : 3.18mm-101.60mm

Wall Thickness : 0.50mm-20.00mm

Length :Normally fixed length 6m, can as per customer’s requirement

Standard : ASTM B163; ASTM B167; ASTM B444; ASTM B622 ect

Material Grade :

Alloy 800 / 800H / 800HT, Alloy 625/UNS N06625,

Alloy 600/UNS N06600, Alloy601/UNS N06601,

Alloy 800/UNS N08800, Alloy 825/UNS
N08825, Alloy400/UNS N04400; etc

Application

Chemical and petrochemical process piping

heat exchangers

furnace components

carburizing equipment,

heating-element sheathing
and nuclear power steam-generator tubing

Delivery Time

30 working days after received your deposit (Normally according to the order quantity)

Test

NTD(Ultrasonic test, Eddy Current test)

Mechanical Test(Tension Test, Flaring Test, Flattening Test, Hardness Test, Hydraulic test)

Metal Test(Metallographic Analysis, Impact Test-High/low temperature)

Chemical Analysis(Photoelectric Emission Spectroscopic)
