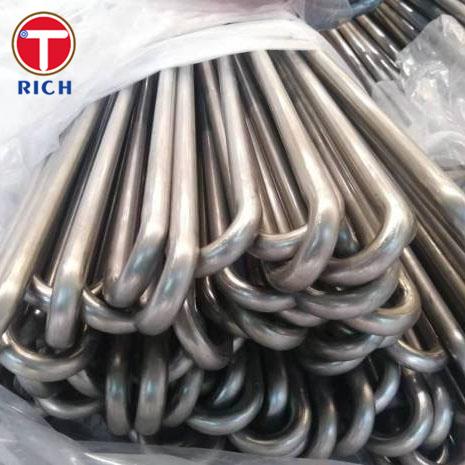

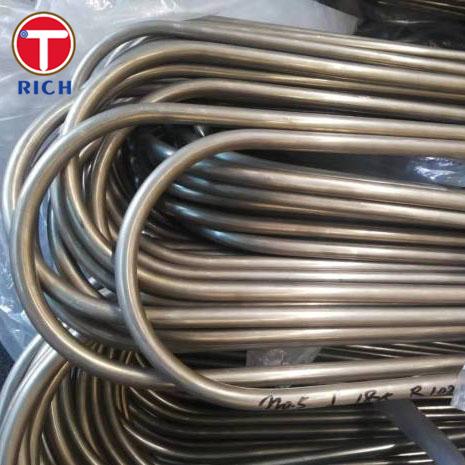

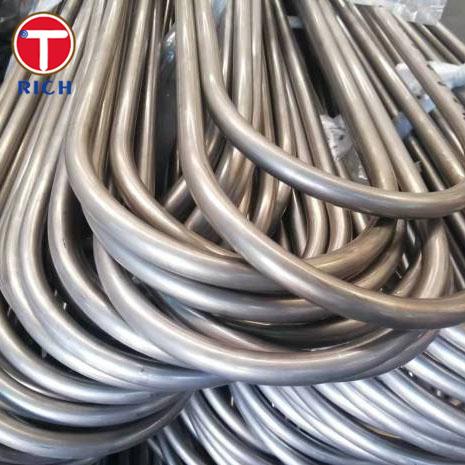

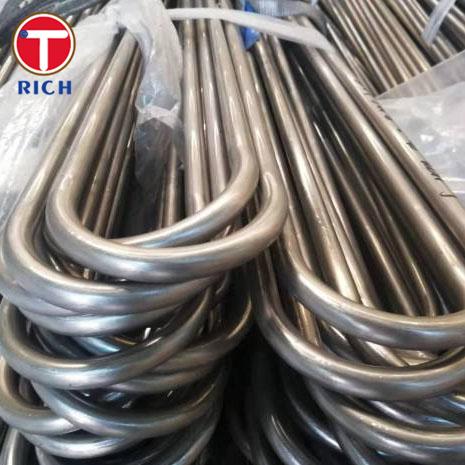

ASTM B111 C71500 Copper-Nickel Enhanced Evaporation U-Tube – 125 MPa Minimum Yield Strength

ASTM B111 C71500 enhanced evaporation U-tube is a seamless 70/30 copper-nickel heat-transfer tube intended for evaporators, condensers, and other shell-and-tube heat-exchange equipment. The C71500 alloy contains 29.0–33.0% nickel with controlled iron addition and, in the O61 annealed condition, has a minimum tensile strength of 360 MPa and a minimum yield strength of 125 MPa under ASTM B111 requirements. ASTM B111 covers seamless copper and copper-alloy condenser and heat-exchanger tubes up to 80 mm outside diameter.

For an enhanced evaporation U-tube, the base tube is manufactured to ASTM B111/B111M requirements, while the U-bend radius, straight-leg length, enhancement profile, unenhanced end length, and dimensional tolerances for the enhanced section should be defined on the purchaser's approved tube drawing. C71500 is technically a copper-nickel alloy rather than an alloy steel grade.

Specifications

ASTM B111 specifies production processes including extrusion, drawing, annealing, straightening, and trimming, and requires chemical, mechanical, performance, and nondestructive examination controls.

Main Features

1. Defined 125 MPa Minimum Yield Strength

C71500 in O61 annealed temper has a minimum tensile strength of 360 MPa and minimum yield strength of 125 MPa, measured by the 0.5% extension-under-load method specified by ASTM B111. This combination provides sufficient strength while retaining the ductility required for tube expansion and U-bending operations.

2. Controlled 70/30 Copper-Nickel Chemistry

C71500 contains 29.0–33.0% Ni, 0.40–1.0% Fe, maximum 1.0% Mn, maximum 1.0% Zn, and maximum 0.05% Pb, with copper as the remainder. The controlled nickel and iron contents are particularly relevant when the tube operates with seawater or other chloride-containing cooling media.

3. 30% Expansion Capability in O61 Temper

ASTM B111 specifies a 30% expansion of the original tube outside diameter for annealed C71500. This is an important acceptance parameter for tubes that must subsequently be mechanically expanded into a tubesheet.

4. Controlled Recrystallized Grain Structure

For annealed C71500 tube, ASTM B111 requires uniform and complete recrystallization, with an average grain size between 0.010 and 0.045 mm. Grain structure is evaluated microscopically in accordance with ASTM E112.

5. Individual Eddy-Current Examination

Each ASTM B111 tube is required to undergo eddy-current examination unless an allowed alternative pressure test is specified. ASTM E243 provides the electromagnetic examination procedure for detecting discontinuities that could affect tube service performance.

Our Advantages

1. Control of Tubesheet Expansion Performance

A major concern for condenser and evaporator manufacturers is whether the tube can be expanded into the tubesheet without splitting, excessive work hardening, or inconsistent sealing.

For C71500 O61 tube, material control is based on the ASTM B111 minimum mechanical properties of 360 MPa tensile strength and 125 MPa yield strength, together with the specified 30% expansion requirement. The annealed grain structure is also controlled within 0.010–0.045 mm. These parameters provide objective acceptance criteria before tubes enter tubesheet assembly operations.

2. Inspection of the Full Tube Length Before Fabrication

Small longitudinal discontinuities, drawing defects, and local wall imperfections are critical procurement concerns because a single leaking tube can require shutdown or plugging after exchanger commissioning.

Each tube can be subjected to eddy-current examination in accordance with ASTM B111 and ASTM E243. Hydrostatic or pneumatic testing can also be specified where applicable. Inspection records, heat identification, chemical analysis, dimensional results, and mechanical-property data can be incorporated into the mill test documentation for traceability.

3. U-Bend and Enhanced-Surface Dimensions Controlled by Drawing

ASTM B111 defines the base seamless tube but does not establish one universal geometry for enhanced evaporation surfaces or finished U-bends. For this reason, production should be controlled from an approved technical drawing defining OD, wall thickness, enhancement height and pitch, smooth-end length, U-bend radius, leg spacing, tangent points, total developed length, and dimensional tolerances.

This avoids treating enhancement geometry as a generic ASTM B111 requirement and gives the heat-exchanger manufacturer measurable inspection criteria for tube insertion, bundle assembly, and tubesheet positioning.

Execution Standards

Application

Multi-Effect Seawater Desalination Evaporator U-Tube Bundle

C71500 enhanced evaporation U-tubes can be used in the tube bundle of a multi-effect seawater desalination evaporator. The copper-nickel base material provides the required heat-transfer tube integrity, while the enhanced evaporation surface increases the effective heat-transfer area and promotes refrigerant or process-fluid boiling on the designed side of the tube.

For this application, the procurement drawing should define the enhanced section length, plain-end section required for tubesheet expansion, U-bend radius, leg spacing, allowable ovality after bending, and inspection requirements.

Chemical Composition

Mechanical Properties
