Jis G3468 2 Inch 3 Inch 6 Inch 8 Inch Stainless Steel Tube

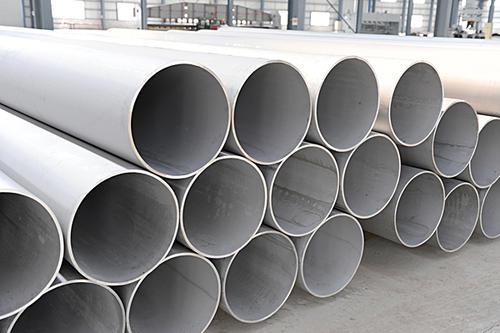

JIS G3468 2 Inch 3inch 6 Inch 8 Inch Large Diameter Stainless Welded Steel Pipe Dimension For Sale
Quick detail:
Size range:
Single Seam: Outside Diameter 6-914mm Wall thickness 0.5-60mm
Double Seams:Outside Diameter 630-1524mm Wall thickness 2-80mm
Circular Seam:Outside Diameter 630 mm above Wall thickness 2-100
Production mecthod: Single Seam,Double Seam,Circular Seam .
Application: For
Electric Power
Oil Refining
Nuclear Power
Drinking Water
Offshore Engineering &Shipbuilding
Natural Gas
Paper making
Construction
Material
Not only stainless steel 304 316 below special material is also available for customer's special requests.
LARGE DIAMETER PIPE Available material
| Material | |
| Austenitic Stainless Steel | 310S, 309S,316L,321,304L,304 |
| Duplex | S,32750,S32760,S31803,S32205 |
| Nickel-Base Alloy | N08904,N06600,N08825 |
| Copper Nickel Alloy | C70600,C70620 |
| Ferrite | 430,409L |
| Other Special Material | 254SMO,253MA |
| High-Temp Material | 310S,309S,S30815 |
| Titanium Alloys | TA2,TA10,TC4 |
Regualar size:
2inch 6 inch 8 inch
Stainless Steel Large Diameter available on sale with us, at most reasonable price in CHina
Feature of Large diameter Steel pipes:
The apprearance of Cold rolled products gloss is good,Beautiful:
Excellent high temperature strength;
Excellent work-hardening(after processing weakly magnetic)
Non-Magnetic state solution
What TORICH do:
1. Producing Steel Tubes
2. Selling both on Domestic and International Market
3. Precisely Targeting Customers’ Requirement- Sourcing the right factory for right products for Customers
Production process:
Steel Coil
Re-test
Flat Open and Transverse Shear
Shear Longitudinal Shear
Edge Planning and Milling
Butt Welding of plate
Forming(Bending/Reeling)
End Squaring&Tack Welding
Welding Seam Cleaning
Automatic welding
Radiographic Test
Solution Treatment
Rounding
Straightening
End Facing Treatment
Hydrostatic Test
Pickling Passivation
Rinse and Dry
Radiographic Test
Finished Production Testing
Marking
Packing
Finished Product Warehousing
Shipping
Standard:
GB/T 12771,A312 JIS G 3468
Delivery condition:
Heat treatment
Welded
| Standard | Item | Outside Diameter | Thickness | Roundness
| Straightness | Length | ||
| GB/T 12771 | Heat treatment | High Class | General | |||||
| ＜50 | ±0.20 | ±0.3 | ＞0.5-1.0,±0.15 ＞1.0-2.0 ±0.20 ＞2.0-4.0 ±0.3 ±10% | Not exceed the OD tolerance t/D≤3% ≤1.5%D | OD ≤ 108 mm,≤1.5mm/m ＞ 108-325mm ≤2.0mm/m ＞ 325mm ≤2.5mm/m
| 3000-9000mm, Length tolerance is 0,+20mm
| ||
| ≥40-＜65 | ±0.30 | ±0.40 | ||||||
| ≥65-＜90 | ±0.40 | ±0.50 | ||||||
| ≥90-＜168.3 | ±0.80 | ±1.0 | ||||||
| ＞168.3-＜325 | ±0.75% D | ±1% D | ||||||
| ≥325-＜610 | ±0.6% D | ±1% D | ||||||
| ＞610 | ±0.6% D | ±0.7% or± 10 Chose min value | ||||||
| Welded | All sizes | ±0.5% D or ±0.20 chose the bigger one | ±0.75% D or ±0.30 chose the bigger one | |||||
