E355 En10305 Round OD5MM Carbon Steel Seamless Pipe for Antifriction Bearings
E355 En10305 Round OD5MM Carbon Steel Seamless Pipe for Antifriction Bearings
Product Discription for E355 En10305 Round OD5MM Carbon Steel Seamless Pipe
| Producsts Name | E355 En10305 Round OD5MM Carbon Steel Seamless Pipe |
| Technical Standard | EN10305 |
| Steel Grade | E215,E235,E355, other materials upon agreement with customers. |
| Certification | ISO9001; ISO14001; TSI16949 |
| Size Range | OD: 5-100 mm, WT: 1-15 mm. Lenth: max12000mm Cutting Length: according to customers PO. |
| Tube Inspection | Chemical analysis Tensile test Flattening test or Drift expanding test Dimensional inspection Visual examination NDT for verification of leaking tightness |
| Tube Application | Hydraulic And Pneumatic Power Systems, Hydraulic And Pneumatic Power |
| Production method
| Cold drawing on the seamless steel tubes, to reach high accuracy on the OD and WT tolerance, with certain heat treatment to achieve better mechanical properties for bending and pressure purposes |
| Deliver condition | +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere Please specifiy the final heat treatment when sending the enquiry. |
Chemical composition
| Name | Number | C max | Si max | Mn max | P max | S max | Al min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.015 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.015 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.015 | - |
| Element | Specified limit of the cast analysis % by mass | Permissible deviation of the product analysis % by mass |
| C | ≤0.22 | +0.02 |
| Si | ≤0.55 | +0.05 |
| Mn | ≤1.60 | +0.10 |
| P | ≤0.025 | +0.005 |
| S | ≤0.015 | +0.003 |
| Al | ≤0.025 | -0.005 |
Requirements for the drift expanding test
| Steel grade | %increase of the diameter D for | ||
| Name | Number | T≤4mm | T>4mm |
| E215 | 1.0212 | 20 | 15 |
| E235 | 1.0308 | 18 | 12 |
| E355 | 1.0580 | 15 | 10 |

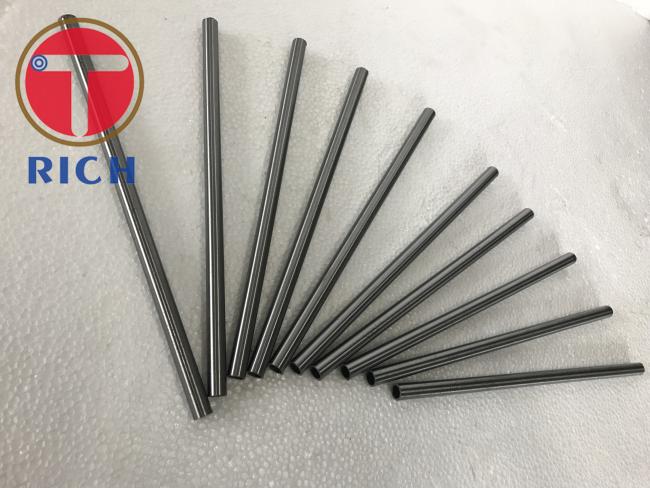

Product Pictures for E355 En10305 Round OD5MM Carbon Steel Seamless Pipe

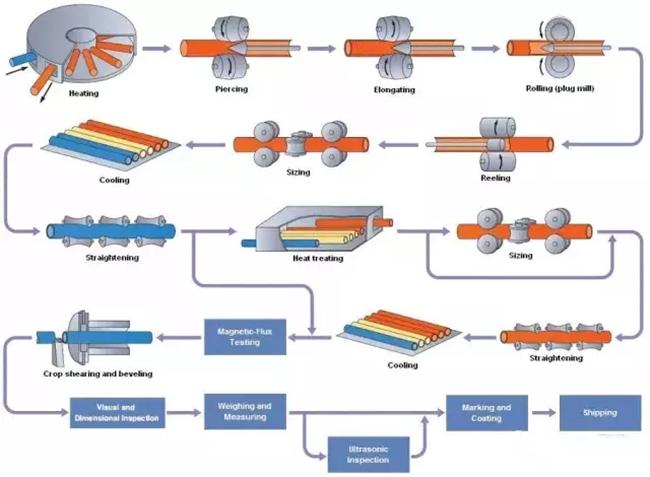

Production Process for E355 En10305 Round OD5MM Carbon Steel Seamless Pipe
Production Workshop for E355 En10305 Round OD5MM Carbon Steel Seamless Pipe
Packaging&Shippping for E355 En10305 Round OD5MM Carbon Steel Seamless Pipe
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
