DIN B16.9 Malleable Cast Iron 90 Degree Elbow Stainless Steel Machining
Price:
8~10 USD one piece
MOQ:
1 Piece
Delivery Time:
30 days
Brand:
TORICH
Product Description

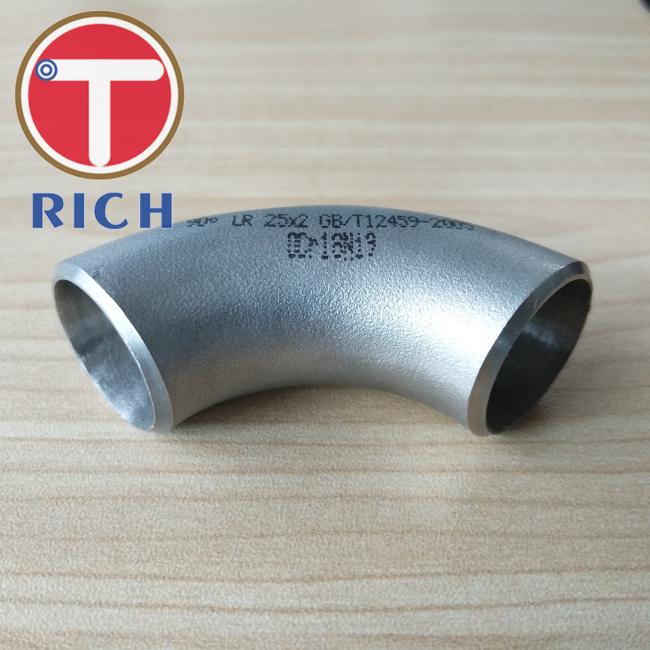

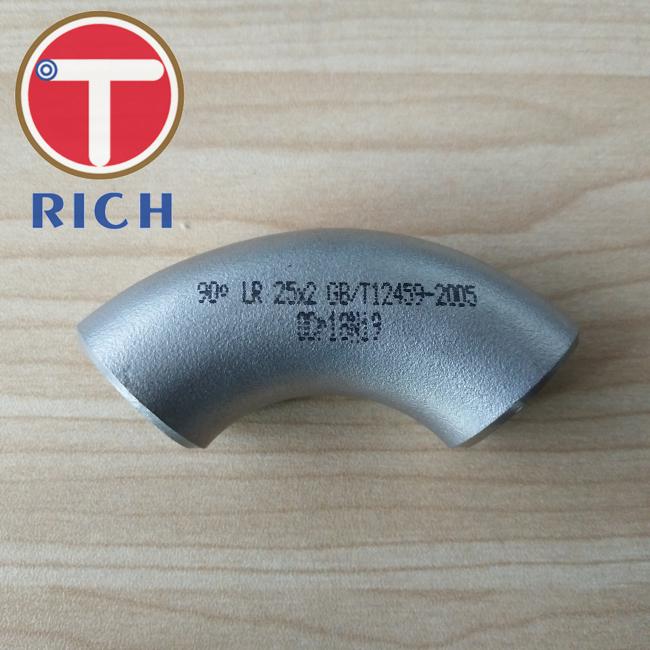

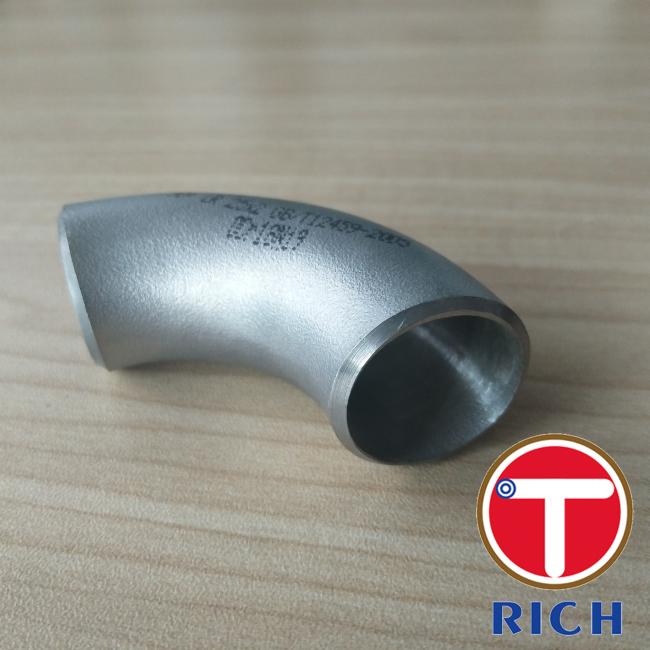

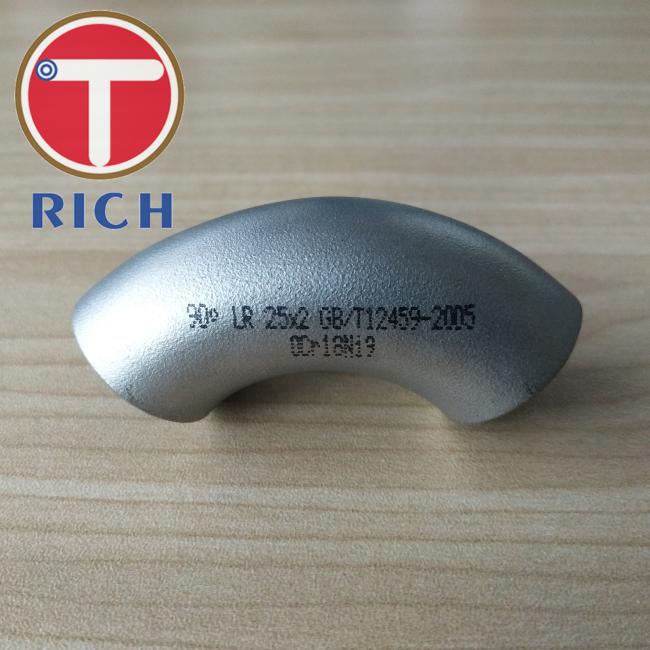

DIN B16.9 Stainless Steel Machining 90 Degree Elbow Malleable Cast Iron
Material:
317/L ; 304/L;316/L;310/S;309/S;347/H;321/321/H;904/L
Applications:
Dairy, food, beer, beverage, pharmacy, cosmetic, etc
Size:
seamless 1/2''~24'' (DN15-DN600)
welded 1/2''~48'' (DN15~DN1200)
| DN | NPS | OD | Center to End | Center to Center |
| 15 | 1/2 | 18 21.3 | 38 | 76 |
| 20 | 3/4 | 25 26.7 | 38 | 76 |
| 25 | 1 | 32 33.4 | 38 | 76 |
| 32 | 1 1/4 | 38 42.2 | 48 | 96 |
| 40 | 1 | 45 48.3 | 57 | 114 |
| 50 | 2 | 57 60.3 | 76 | 152 |
| 65 | 2 1/2 | 76 73 | 95 | 190 |
| 80 | 3 | 89 | 114 | 228 |
| 90 | 3 1/2 | 101.6 | 133 | 266 |
| 100 | 4 | 108 114 | 152 | 304 |
| 125 | 5 | 133 141.3 139.7 | 190 | 380 |
| 150 | 6 | 168.3 159 165 | 229 | 458 |
| 200 | 8 | 219 216 | 305 | 610 |
Standard: ASME B16.9 ; DIN2605 ; JIS
