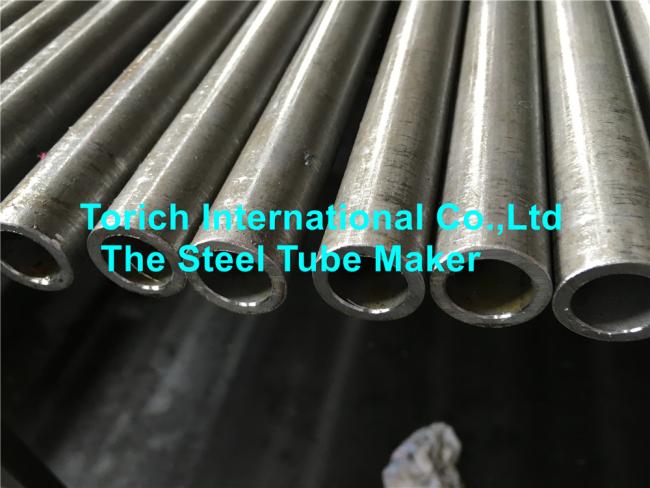

ASTM 52100 52100 100Cr6/1.3505 SUJ2 535A99/EN31 Bearing Steel Precision Steel Tube
ASTM 52100 52100 100Cr6/1.3505 SUJ2 535A99/EN31 Bearing Steel Precision Steel Tube
Torich is a manufacturer with over 20 years‘ experiences,hot products high precision seamless steel pipe bearing steel tubes,material is from carbon steel alloy steel.
High precision seamless stee tubes is widely exported to various countries with good feedbacks.
Material S1541 GCr15 G4051 SUJ2 100Cr6(1.3505)
Characteristic of 100Cr6/1.3505 material:
Bearing steel has high and uniform hardness and wear resistance as well as high elastic limit. Bearing steel is one of the most stringent steels in all steel production because of its strict requirements on the uniformity of chemical composition, the content and distribution of non-metallic inclusions, and the distribution of carbides. In 1976, ISO of the International Organization for Standardization (ISO) incorporated some general bearing steel numbers into the international standards, and divided the bearing steel into four categories: fully hardened bearing steel, surface hardened bearing steel, stainless bearing steel, high temperature bearing steel and a total of 17 steel grades.
Application:Used for making various bearing rings and rollers.
Size range: OD 4-114mm WT0.5-12mm
Chemical Composition:
Relevant Steel Specification of ASTM 52100 Bearing Steel
| Country | USA | German | Japan | British |
| Standard | ASTM A295 | DIN 17230 | JIS G4805 | BS 970 |
| Grades | 52100 | 100Cr6/1.3505 | SUJ2 | 535A99/EN31 |
Chemical Composition of 52100 Bearing Steel and Equivalents
| Standard | Grade | C | Mn | P | S | Si | Ni | Cr | Cu | Mo |
| ASTM A295 | 52100 | 0.93-1.05 | 0.25-0.45 | 0.025 | 0.015 | 0.15-0.35 | 0.25 | 1.35-1.60 | 0.30 | 0.10 |
| DIN 17230 | 100Cr6/1.3505 | 0.90-1.05 | 0.25-0.45 | 0.030 | 0.025 | 0.15-0.35 | 0.30 | 1.35-1.65 | 0.30 | – |
| JIS G4805 | SUJ2 | 0.95-1.10 | 0.50 | 0.025 | 0.025 | 0.15-0.35 | – | 1.30-1.60 | – | – |
| BS 970 | 535A99/EN31 | 0.95-1.10 | 0.40-0.70 | – | – | 0.10-0.35 | – | 1.20-1.60 | – | – |
Delivery condition:
Soft annealing:
Heat to 760-800 ℃,cool slowly in furnace.This will produce a maxium Brinell hardness of 207.
Stress Relieving:
Stress relieving to remove machining stresses should be carried out by heating to 650 ℃,holding
for one hour at heat, followed by air cooling.This operation is performed to reduce distorition during
heat treatment.
Hardening:
Harden from a temperature of 830-870 ℃ followed by oil quenching.Hardness after quenching is
64 HRC.
Tempering:
Tempering temperaure 150-180 ℃.
Forging:
Hot forming temerature:1200-926 ℃
