Pneumatic Hydraulic Cylinder Tube 304 Stainless Steel

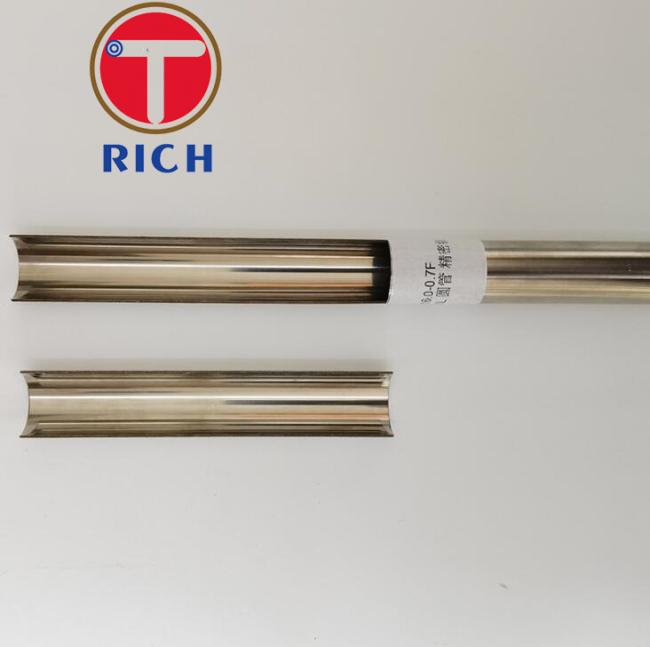

304 pipe pneumatic cylinders stainless steel pipe
Quick detail :
| Origin | China |
| Brand name | Torich |
| Certificate | ISO9001 TS16949 |
| Material | 304,316,AISI 310 etc |
| Product name | 304 pipe pneumatic cylinders stainless steel pipe |
| Capacity | Cutting polishing grinding |
Basic introduction
Production method:Seamless Cold drawning
I.D.: 40-400mmW.T.: ≥5mm
Technique: Cold Draw
Material:304 316 ect stainless steel.
Place Of Origin: Zhejiang, China (Mainland)
Material :
Steel Grade:
| Ferrite | Austenite | Duplex | Super Duplex | Ni-Alloys | Titanium |
| TP410 TP405 S44400 S44660 TP430 | TP304/304L/TP304H TP316/316L/TP316H TP316Ti TP317/317L TP321/TP321H TP347/TP347H TP310S/TP310H N08904/904L | S31803 S32205 S32304 S31500 | S32750 S32760 | C276 MONEL400 HASTELLOY B HASTELLOY 22 N06600 N06625 no6690 N08020 N08800 N08810 N08811 N08825
| Gr.2 |
Tube Of Other Alloys And Steel Grades Can Be Produced Upon Agreement.
What we can do :
Cold draw
Feature:
1. Outer roughness ≤0.4μm inner ≤0.8μm
2. Concentricity 0.1
3. Straightness≤0.3mm/1000mm
4. Tensile strength ≥500MPa Elastic limit Rp0.2 ≥200MPa
Packaging:Wooden cases or according to client’s requirements
Shipping: Land transportation/Ocean transportation
