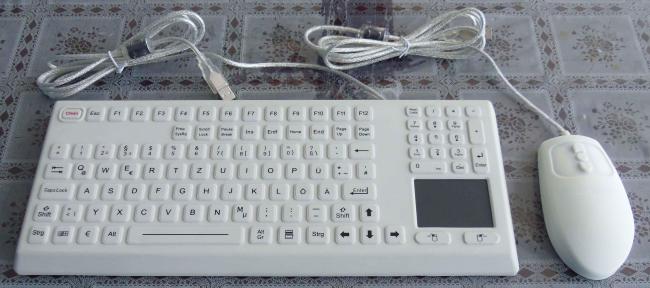

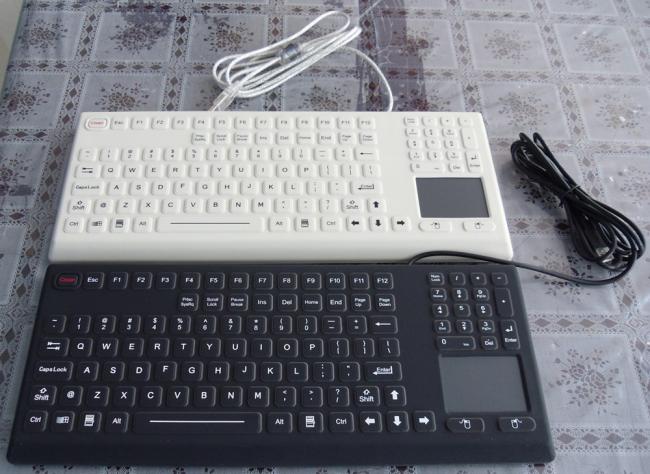

108 IP68 keys washable antimicrobial silicone industrial keyboard for medical
108 IP68 keys washable antimicrobial silicone industrial keyboard for medical
Special Features:
Keyboard provides full size versatility in a rugged, compact design, rugged construction for reliable functionality.
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust,dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use. Clean key Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime.User is notified of ‘lock down mode’ by brightly lit CLEAN KEY Special durable coating for excellent mechanical and chemical resistance. With firm tactile key feel, key travel 1.50mm key travel.
Integrated touchpad. Integrated numeric keypad. Ease of customizing with multiple languages, to accommodate foreign or custom variants. PS/2, USB connection cables that plug directly into computer like keyboard operations.
Enclosure: industrial silicone, Aluminum (rear side).
Low-profile keys for easy cleaning
MECHANICAL DATA:
| Key | 108 keys |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Touchpad cover | Composite, More than Lifetime 10 million strokes |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5 VDC ±0.25V |
| Key Size | 12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key. |
| Switch life: | more than 10 million of operations |
| Cable Length | 2.5m |
| Dimensions | 390.0mm x 154.0mm x 19.0mm (L x W x H) |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5 VDC ±0.25V |
| Current rating (active mode) | 17 mA |
| G.W. | 1.50KGs |
ELECTRICAL DATA:
|
Current Rating |
30mA (non-backlight) , 150mA (with backlight on) |
|
EMC Standard |
It is compliance with the council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1: 2001+A2:2003 |
|
Emission |
EN 50081-1 |
|
Immunity |
EN 50082-1 |
|
Lifespan |
> 3 years |
|
Switch Contact Material |
Carbon-on-Gold key switch technology with gold PCB |
|
OS |
All Windows, Linux, Unix, Mac OSX, Vxworks, Android |
|
Atmospheric pressure |
60-106Kpa |
ENVIRONMENTAL ADAPTABILITY:
- Operating temperature:-20℃ to +60℃(industrial level), -40℃ to +85℃(military level)
- Storage temperature: : -30℃ to +70℃ (industrial level), -55℃to +150℃(military level)
- Humidity: 100%
- Shock: 3x11 ms pulses of 50g on each of 3 axes
- Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours Flammability
- PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V
RELIABILITY:
- RoHS , CE, FCC, ESD
- Protection Level: IP68, NEMA 6P
- Key Lifespan >10 million actuations
- MTBF >50000H
- MTTR <30min
