50mm White Trackball Pointing Device 1200 DPI For Medical Application
Price:
To be quoted
MOQ:
1pc
Delivery Time:
ASAP Within 2 weeks upon payment confirmed
Brand:
IKB-MKB
Product Description

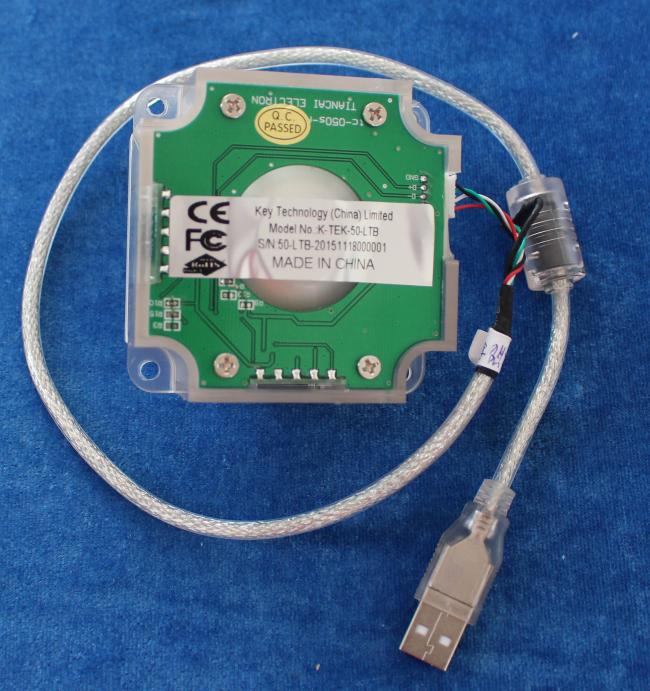

50mm White Trackball Pointing Device 1200 DPI For Medical Application
MODEL NO.: K-TEK-50-LTB
DESCRIPTION: 50.0mm IP65 waterproof laser trackball module with 1200 DPI resolutions for fast and accurate cursor movement.
DIMENSIONS: 72.00mm x 72.00mm x 50.80mm(front panel)
TECHNICAL SPECIFICATION
| ITEM | SPECIFICATION | ||
| Mechanical Data | Ball diameter | 50mm/2.00'' (19mm, 25mm, 38mm also available) | |
| Track ball lifespan | > 5 years | ||
| Dimension | 50.0 mm diameter for ball, 72.00mm x 72.00mm x 50.80mm(front panel) | ||
| Interface | PS2, USB are available, Y type cable with ports of PS2 and USB | ||
| Electrical | Power supply | +5V DC +/-5% | |
| Protection level | IP65 (static) | ||
| EMC Standard | EN 55032:2015, EN 55035:2017 | ||
| Power consuming | ≤1.00W(dynamic) | ||
| ≤0.2W(static) | |||
| Environmental | Operating temperature | -20ºC~+ 60º C | |
| Storage temperature | - 30ºC~+ 70ºC | ||
| Operating RH | 30～90% | ||
| Atmospheric pressure | 60～106Kpa. | ||
| Reliable | Certificates | RoHS compliant, CE and FCC certified | |
| MTBF | >20000h | ||
| MTTR | < 30min | ||
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) | ||
| Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. | ||
Mechanical Drawing:
