Removable Industrial Trackball Pointing Device 38mm For Ultrasound Medical
38mm trackball mouse with removable top plate and for ultrasound medical Industrial
DESCRIPTION:

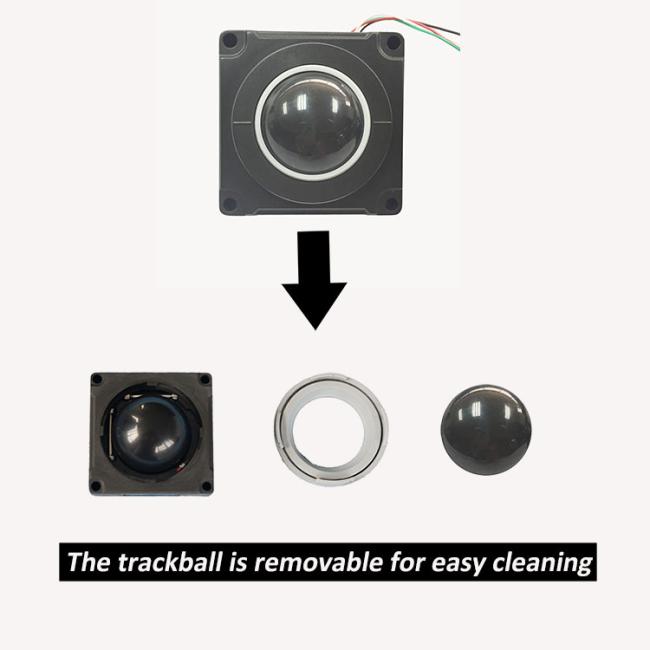

38.0mm (1.5’') vandal proof IP65 mechanical trackball module with a hardened resin black color ball, the ball can be taken out for easy clean.
DIMENSIONS: 60.0mm x 60.0mm x 24.6mm(front panel)
MAIN FEATURE
· Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
· Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
TECHNICAL SPECIFICATION
| ITEM | SPECIFICATION | |
| Mechanical Data | Ball diameter | 38mm/1.50’' |
| Track ball lifespan | > 5 years | |
| Dimension | 38 .1 mm diameter for ball | |
| Interface | PS2, USB are available, Y type cable with ports of PS2 and USB | |
| Electrical | Power supply | +5V DC +/-5% |
| Protection level | IP65 (static) | |
| EMC Standard | EN 55032:2015, EN 55035:2017 | |
| Power consuming | ≤1.00W(dynamic) | |
| ≤0.2W(static) | ||
| Environmental | Operating temperature | -20ºC~+ 60º C |
| Storage temperature | - 30ºC~+ 70ºC | |
| Operating RH | 30~90% | |
| Atmospheric pressure | 60~106Kpa. | |
| Reliable | Certificates | RoHS compliant, CE and FCC certified |
| MTBF | >20000h | |
| MTTR | < 30min | |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) | |
| Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. | |

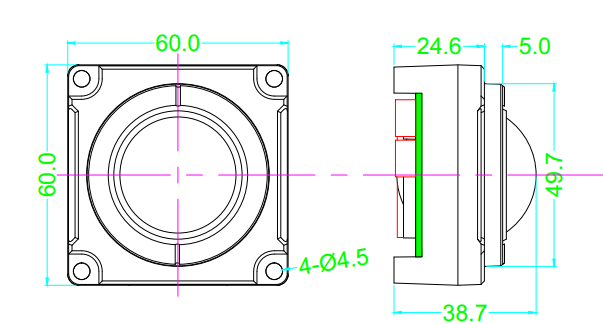

Medical Drawing:

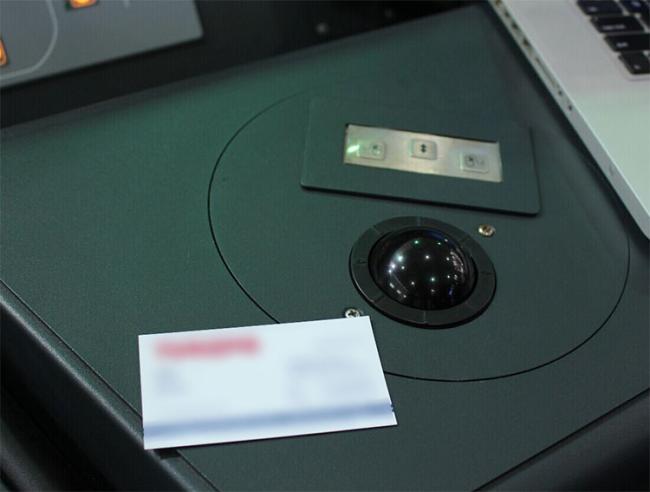

Application:
