Washable 38.0mm Removable Medical Trackball For Ultrasound

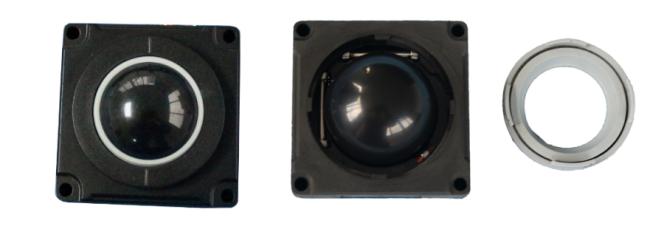

38mm Trackball with Removable Top Plate for Ultrasound Medical Industrial
MAIN FEATURE
Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
TECHNICAL SPECIFICATION:
| ITEM | SPECIFICATION | |
| Mechanical Data | Ball diameter | 38mm/1.50’' |
| Track ball lifespan | > 5 years | |
| Dimension | 38 .1 mm diameter for ball | |
| Interface | PS2, USB are available, Y type cable with ports of PS2 and USB | |
| Electrical | Power supply | +5V DC +/-5% |
| Protection level | IP65 (static) | |
| EMC Standard | EN 55032:2015, EN 55035:2017 | |
| Power consuming | ≤1.00W(dynamic) | |
| ≤0.2W(static) | ||
| Environmental | Operating temperature | -20ºC~+ 60º C |
| Storage temperature | - 30ºC~+ 70ºC | |
| Operating RH | 30～90% | |
| Atmospheric pressure | 60～106Kpa. | |
| Reliable | Certificates | RoHS compliant, CE and FCC certified |
| MTBF | >20000h | |
| MTTR | < 30min | |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) | |
| Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. | |
Q: Are you trading company or manufacturer ?
A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.
Q: How long is your delivery time?
A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.
Q: Do you provide samples ?
A: Yes, we could offer the sample of one quantity first before large quantity orders.
Q: What is your terms of payment ?
A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
