120W Big Power Automatic Garage Door Opener Operated by Electric 24V Gear Motor
120W Big Power Automatic Garage Door Opener Operated by Electric 24V Gear Motor
Description:
A garage door opener is a motorized device that opens and closes Garage Doors. A quick-release mechanism is attached to the trolley to allow the garage door to be disconnected from the opener for manual operation during a power failure or in case of emergency. Limit switches on the power unit control the distance the garage door opens and closes once the motor receives a signal from the remote control or wall push button to operate the door.
Applications:
Widely used in automation roll-up garage door opener.
Specifications:
Motor Performance date:
|
Type |
Brush |
|
Voltage |
24VDC |
|
Power |
60W |
|
No-load Speed |
30rpm |
|
No-load Current |
0.7A |
|
On-load Speed |
25rpm |
|
On-load Current |
4.5A |
|
Stall torque |
50Nm |
|
Gear material |
Nylon |
|
Protection class |
IP44 |
|
Weight |
1.75kg |

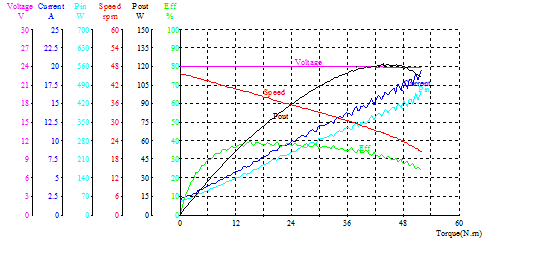

Characteristic curves of motor:
|
State |
Voltage |
Current |
Pin |
Torque |
Speed |
Pout |
Eff |
|
V |
A |
W |
N.m |
rpm |
W |
% |
|
|
Speed_max |
23.99 |
1.960 |
47.04 |
0.21 |
45.9 |
1.01 |
2.1 |
|
Eff_max |
23.98 |
6.591 |
158.0 |
15.12 |
39.7 |
62.84 |
39.7 |
|
Pout_max |
23.94 |
16.13 |
386.3 |
43.71 |
26.7 |
122.1 |
31.6 |
|
Torque_max |
23.91 |
19.60 |
468.7 |
52.01 |
20.4 |
111.1 |
23.7 |
|
End |
23.91 |
19.60 |
468.7 |
52.01 |
20.4 |
111.1 |
23.7 |
Competitive Features:
1. Remote control with rolling code;
2. One push of the remote button and you drive straight into your garage
3. Simple programming of operation settings
4. Automatic refund function in case of obstacles
5. Availability of automatic closing function with programmed delay time
6. Soft start & stop, powerful, low noise;
Motor Outline drawings:
