24VDC 300W Permanent Magnet DC Motor , High Power Motor For Electric Wheelchair
Motor for electric wheelchair High power, high torque DC brush motor 24VDC 300W
Quick Detail:
Code: 5007 Type: Brush dc motor Rated Voltage: 24VDC Rated Power: 300W Rotate Direction: CW &CCW
Application: Electric wheelchair
Rated speed:5300RPM
Performance data of Electric wheelchair motor :
| Code | Voltage | Power | Speed | Current(max) | Noise(max) | Ratio | Brake |
| VDC | W | RPM | A | dB | |||
| 5007 | 24 | 300 | 5300+100 | 4.5 | 65 | 1.25 | 24VDC,05.A, 20kgf-cm |

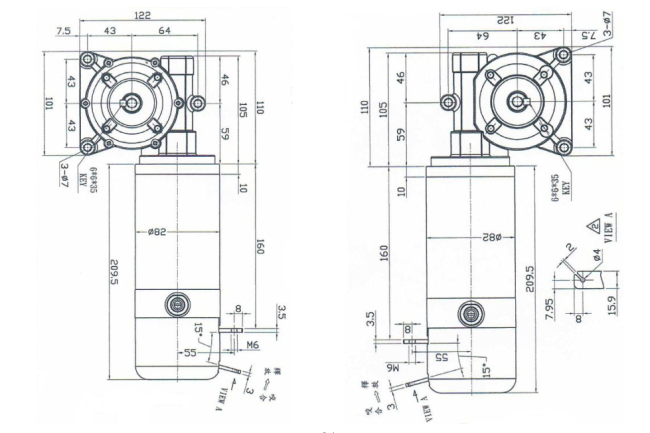

Outline drawings of Electric wheelchair motor :
Product detail drawing:
Application Examples:
