Easy Installed Permanent Magnet DC Motor for Electric Sliding Door Motors 300kg
Easy Installed Permanent Magnet DC Motor for Electric Sliding Door Motors 300kg
Description:
Permanent Magnet Brushed DC (PMDC) motors are the most common BDC motors found in the world.These motors use permanent magnets to produce the stator field. PMDC motors are generally used in applications involving fractional horsepower because it is more cost effective to use permanent magnets than wound stators.
Applications:

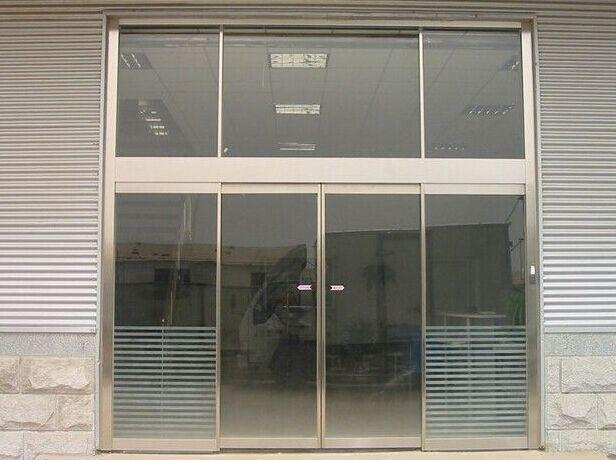

This kind of PMDC Brushed gear motor is used for Automatic Sliding Door Operators.
Specifications:
|
Type |
Brush |
|
Voltage |
24VDC |
|
Power |
60W |
|
No load Speed |
250rpm |
|
No load Current |
0.7A |
|
On load Speed |
200rpm |
|
On load Current |
3.5A |
|
Stall torque |
12Nm |
|
Protection class |
IP44 |
|
Weight |
1.5kg |
|
Encoder Honeywell |
1signal,40pulse |
