Round Sliding Glass Electric Door Motor 24VDC White Light Brush Less 75 W
Round Electric Sliding Glass Door Motor Heavy Duty 24V DC Brushless
Quick Detail:
Code: 413 Type: Brushless Operation Voltage: 24VDC Power: 75W Rotate Direction: CW &CCW
Application: Automatic door Door Open style: Sliding Opening type: With Remote Control
Functional: Automatic operation/hold-open/closed/half-open
Security: Automatic stop/reverse during opening or closing
Door Weight Bearable: 300kg /2 Leaves Door Width: 650~1600mm
Environment temperature: -10 ~ +55ºC Lifetime: 6 million times
Applications:
Electric sliding door motor can be used on any kinds of Automatic doors: Sliding Door, Swing Door, Curved Door, Folding Door, Hermetical Door, Telescopic Door, Panic Door, Revolving Door, and Hospital, which are widely used in Hotel, Hospital, Shopping Mall, Bank, Commercial office building, etc.
Specifications:
Performance data of Electric Sliding Door Motor:
| Code | 413 |
| Type | Brushless |
| Voltage | 24VDC |
| Power | 75W |
| No-load speed | 150rpm |
| On-load speed | 120rpm |
| Noise level | ≤50dB |
| Protection class | IP44 |
| Gear Ratio | 1:15 |
| Weight | 2.5kg |
| Lifetime | 6 million times |
| Application | Automatic door |

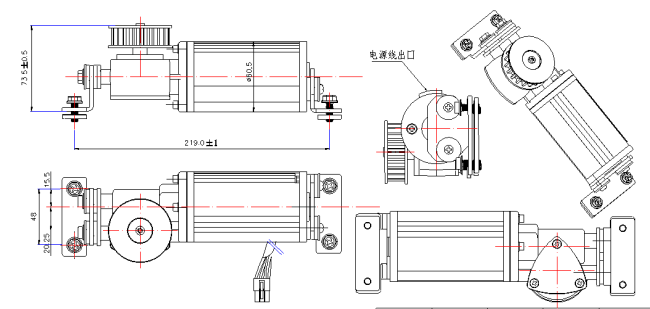

Outline drawings of Electric Sliding Door Motor:

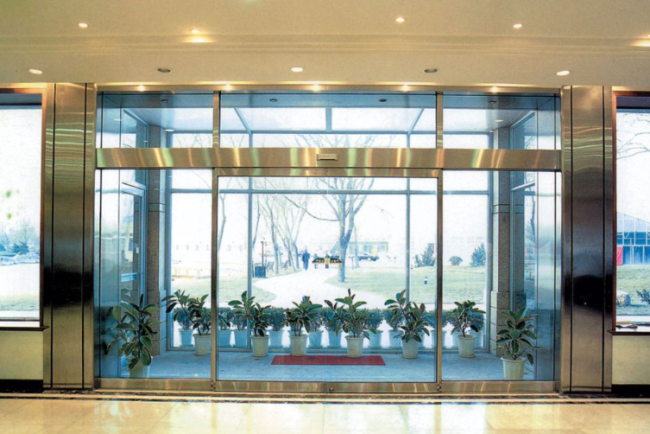

Electric Sliding Door Application Examples:
