Black Oxide Dog Railroad Track Spikes / Boat Spike without crack
Black Oxide Dog Railroad Track Spikes / Boat Spike without crack
Technical Parameters
| Grade | 4.6 | 5 .6 | 8.8 |
| Material | Q235 | 35# | 45# |
| Mechanical | Tensile strength: ≥ 400Mpa | Tensile strength: ≥ 500Mpa |
Tensile strength: ≥ 800Mpa |
| Yield strength: ≥ 240Mpa | Yield strength: ≥ 300Mpa | Yield strength: ≥ 640Mpa | |
| Elongation: ≥ 22% | Elongation: ≥ 20% | Elongation: ≥ 12% | |
| Cold bending: 90 degree | |||
| without crack | |||
| Surface | plain (oiled) , Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | ||
| Standard refers | ISO898-1, UIC864-1, and NF F500-50 | ||
|
Brand |
Zhongyue |
||||||||
|
Name |
railway track spike |
||||||||
|
Size |
16x16xL |
16x16xL |
5/8”x5/ 8”xL |
3/8”x3/8”xL |
16x16x 170 |
16x16x150 |
9/16"xL |
square |
square 16mm |
|
5/8"x5/ 8"x5" |
5/8"xL |
10mm |
19mm |
||||||
|
|
|
16mm |
Dia.22mm |
||||||
|
Grade |
4.6 |
4.6 |
A370 |
ASTM A65 Gr1,Gr2 |
4.6 |
4.6 |
ASTM A65 Gr1,Gr2 |
4.6 |
4.6 |
|
Material |
Q235 |
low carbon steel |
Q235 |
Q235 |
low carbon steel |
low carbon steel |
low carbon steel |
SS41 |
low carbon steel |
|
Surface |
plain (oiled) |
||||||||
|
Standard refers |
GB/T 1346 |
GOST 5812 |
AREMA |
AREMA |
Ss-EN10025 |
BS70R, BS60R |
AREA |
JIS E1108 |
AS 1085.8 |

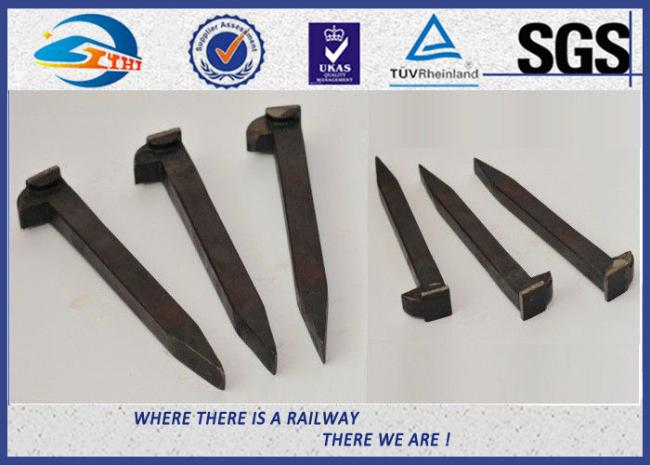

Samples Show:

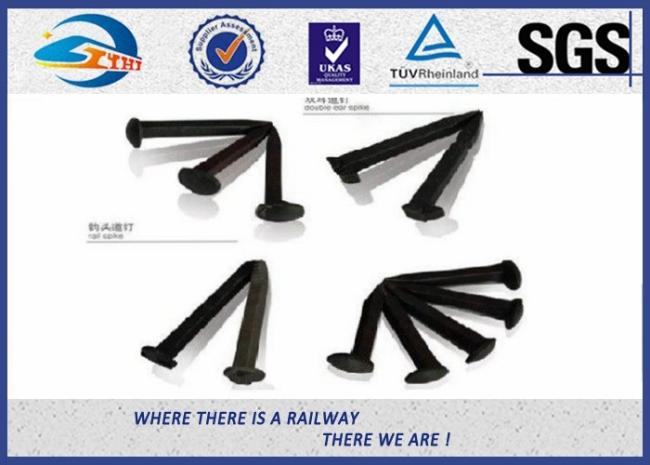

Main Types Of Spikes
Package
25kg per double layer woven bag+ free fumigation wooden pallet
Zhongyue specialize in producing rail fastening , track spikes are our main products, which is in accordance to DIN/GOST/ AREMA /GB/TB standard , below is some of our main products .
1. Track spikes are manufactured to ARMEA specifications in both soft steel and high tensile grade
|
Size |
Weight(Kg) |
|
Square 3/8"×3" |
0.069 |
|
Square 3/8"×3-1/2" |
0.078 |
|
Square 1/2"×4-1/2 " |
0.165 |
|
Square 5/8"×5-1/2" |
0.34 |
|
Square 5/8"×6" |
0.375 |
With regard to the high tensile grade of the USA AREMA specification, the material is the medium carbon steel; therefore, the chemical composition and mechanical properties should be as follows:
|
C |
Mn |
Si |
P |
S |
|
0.17 - 0.25% |
0.9 - 1.35%
|
0.35 Max
|
0.04% Max
|
0.05 Max
|
|
Tensile strength |
Yield point |
Elongation (in 2" length sample) |
|
70,000 psi Min |
46,000 psi Min |
25% Min |
2.Boat spikes are available both galvanized and black , common size are below :
3/8"×6" . 3/8"×8" . 3/8"×10" . 1/2"×10" . 1/2"×12" .
3. Rail spikes are used for BS80LBS.75LBS & 90LBS rails , in addition to our normal products , their shape and dimension can be produced and designed according to the specification of our customers . Their size can be 12mm .13mm.16mm , the length can be adjusted to client requirement .
4. Dog spike with square shank as per AS1085.8 ,16mm square .19mm square &22mmsquare are available and round shank 16mm .19mm &22mm for Australia Market .
5. Special rail spike are also available , such as 12×12 ×120. 14×14×140 .16×13×150 .
6. We also can produce the lock spike with many sizes according to our customers' requirement .
As a leading manufacturer of rail fastening in China , Zhongyue also can produce many other railway fasteners , such as track bolt . Sleeper screw . rail anchor .rail joint bar . tie plate .rail clips ,elastic rail clip .SKL tension clamp .rail shoulder and so on .
Sticking to the “quality first” policy, Zhongyue pays great attention to quality control management. We have granted ISO9001-2000 certificates and have got the production license of China’s Railway Ministry on railway products. We have a full set of inspection instruments which makes sure all the products produced by us should be of high quality and up to customers’ requirements.
