Small Coffee Paper Cup Making Machine For PE Coated Paper Manufacturing
Small Coffee Paper Cup Making Machine For PE Coated Paper Manufacturing
Main technical parameter
| Model | SMD-90 | |||
| Capacity | pcs/min | 100-120 | 90-110 | 80-100 |
| Size Range | mm(max) | Top diameter:90 Bottom Diameter:80 Height:140 |
Top diameter:110 Bottom Diameter:80 Height:170 |
Top diameter:125 Bottom Diameter:100 Height:170 |
| Suitable Paper Thickness | gsm | 135-450 | ||
| Sealing Method | Ultrasonic and hot air system | |||
| Running Power | KW | 10 | 11 | 12 |
| Air compressor | 0.4m²/Min. 0.5MPa | 0.5m²/Min. 0.5MPa | 0.6m²/Min. 0.5MPa | |
| Net weight | Kgs | 3400 | 3500 | 3600 |
| Machine dimension | mm | 2500*1800*1700 | 2600*1800*1800 | 2700*1800*1800 |
| Collector Dimension | mm | 900*900*1760 | 1000*900*1860 | 1100*900*1860 |
How to select my paper?
Mostly, cup manufacturers use PE coated paper for production. In recent years, PLA coated paper (bio-degradable) also used in certain market along with the rising of environmrntal awareness. Foe paper cup industrial, we suggest manufacturere to use minimum PE thickness single PE 18g/m2 or double PE 18/12 g/m2. According to the common sense of paper cup machinery( paper thickness is more important than base weight). Paper thickness tolerance of each size should be within +-0.02mm.
According to function
Generally speaking, cold cups need double PE coated paper and hot cups need single PE coated paper.
According to cup size
Normally, the bigger the cups volume, the thicker the paper should be. Such as 12oz-16oz cups need 0.31mm-0.41mm thickness paper according to purposes of use both thicker or thinner paper can be formed , but the holding feeling is different when using.
Machine video
https://www.youtube.com/watch?v=3vboPdSjjAo

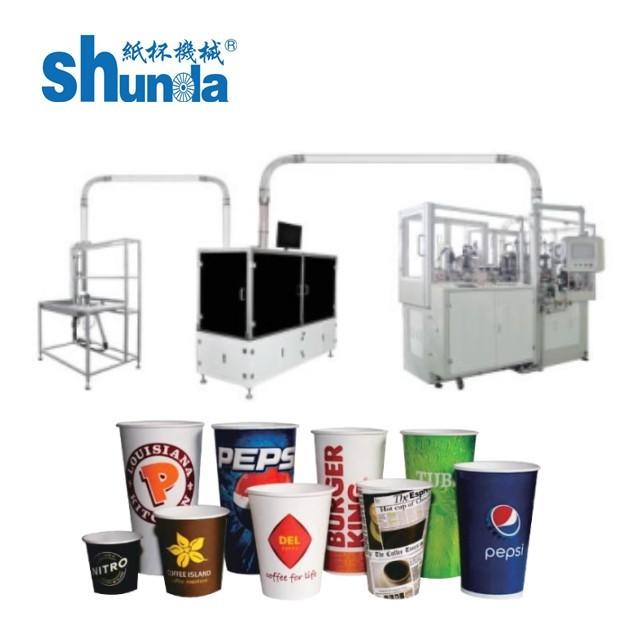

Whole production line of paper cup
Our advantage
--More than 26 years experience focus in paper cup/bowl/container machine
--Customers all over the world
--Certificate: CE certificate,ISO 9001
--Fast reply:7*24 quick response
--After sale service: We have a after sale department , service for your problems and dealing with spare parts.
