Paper Cup Machine With hot air and ultrasonic Heating System to make good sealing
Paper Cup Machine With Hot Air And Ultrasonic Heating System To Make Good Sealing
1. Description

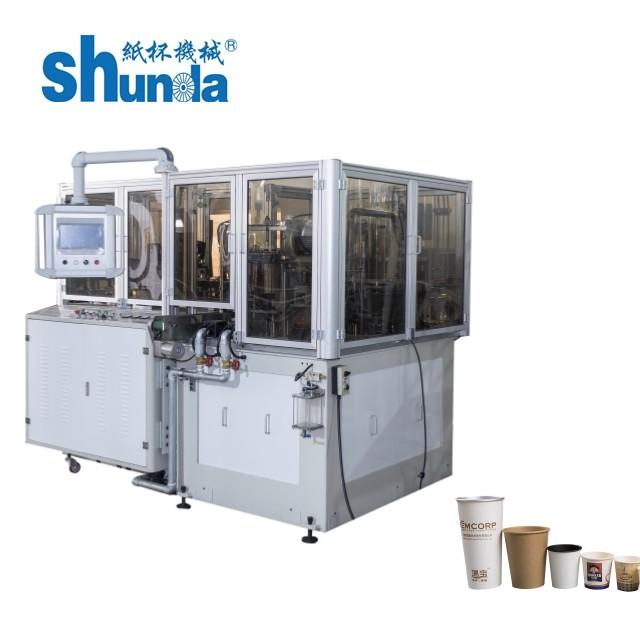

SMD-90 paper cup making machine is an improved and upgraded machine of the low speed types. In order to realize optimal functions and performance, it utilizes open cam design, interrupted division, gear drive and longigudinal axis structure.
It could produce 3-46 oz cold and hot drink paper cup, such as coffee cup ,tea cup , water cups etc .especially it is popular for making small coffee cup 3oz for Algeria market.
2. Videos
Paper Cup Machine(145pcs/min): High Speed Paper Cup Machine - 150 pcs/min
https://www.youtube.com/watch?v=3vboPdSjjAo
Cup process
3. Shinning points for this model SMD-90 Paper cup making machine
a.Advanced double barrel cam indexing
b.PLC colsed-loop control system
c.Automatic oil lubrication system
d.Cup inspection and intelligent control-optiona
e. Servo control for bottom feeding
f. Flameless hot air and ultrasonic sealing
4. Main technical data
| Model | SMD-90 | |||
| Capacity | pcs/min | 100-120 | 90-110 | 80-100 |
| Size Range | mm(max) | Top diameter:90 Bottom Diameter:80 Height:140 |
Top diameter:110 Bottom Diameter:80 Height:170 |
Top diameter:125 Bottom Diameter:100 Height:170 |
| Suitable Paper Thickness | gsm | 135-450 | ||
| Sealing Method | Ultrasonic and hot air system | |||
| Running Power | KW | 10 | 11 | 12 |
| Air compressor | 0.4m²/Min. 0.5MPa | 0.5m²/Min. 0.5MPa | 0.6m²/Min. 0.5MPa | |
| Net weight | Kgs | 3400 | 3500 | 3600 |
| Machine dimension | mm | 2500*1800*1700 | 2600*1800*1800 | 2700*1800*1800 |
| Collector Dimension | mm | 900*900*1760 | 1000*900*1860 | 1100*900*1860 |
