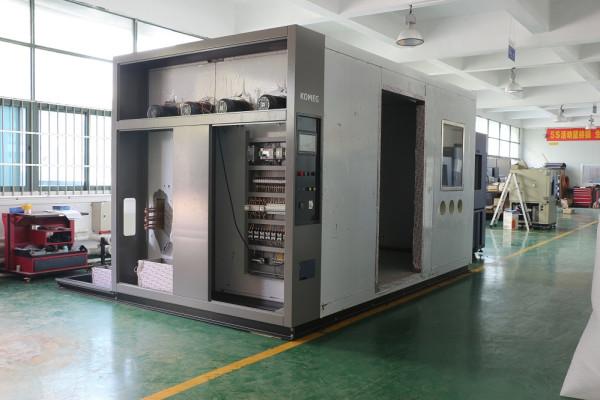

High Performance Alarm Notification System Walk-In Chamber For Reliability Testing
Exellent Communications & Connectivity Performance Walk-In Chamber for Semi-TruckTesting
Walk-In Type Temperature Test Chambers
Communications & Connectivity
Ethernet capability to remotely monitor and control multiple test chambers. Wired, wireless, local area network or World Wide Web Ethernet connectivity provides anytime, anywhere access using a PC or PDA device.
Alarm notification system sends email and/or text phone messages, saving valuable tests while reducing downtime.
Integrated email sends data files directly from the controller with a touch of a button.
Data Logging
Data logging with custom file names, batch & lot numbers, operator events & digital signatures.
Automated “Ethernet” back-up of data files provides “hassle free” file management.
Easily download profiles, alarm files, audit trail files and data files to a USB stick in a compatible.
Import profiles to other chambers saving valuable profile entry time.
Access data files directly from controller or PC.
Walk-In Chamber Specifications:
| Specifications | |||
| 0℃ | 0.001293g/cm3 | Interior size (W*D*H) | 600*600*600mm |
| 5℃ | 0.001270g/cm3 | Air-change rate | 100~200 times/hr , adjustable |
| 10℃ | 0.001247g/cm3 | Temp. controller | Digital controller, P.I.D. +SCR o/p |
| 15℃ | 0.001226g/cm3 | Temp. range | R.T.+20~+300℃ |
| 20℃ | 0.001205g/cm3 | Specimen's rotary disk | Three layers, three circles per layer |
| 25℃ | 0.001184g/cm3 | Dimension (W*D*H)mm | 1250*840*1630 |
| 30℃ | 0.001165g/cm3 | Weight | 280kg |
| Power | AC220V 1Φ 25A 50Hz/60Hz | ||
Walk-In Chamber Types Knowledge:
| Model | Temperature Range | Humidity Range | Temperature Change rate | Recommended Test / Application |
| Panel Walk-in Chamber | -60°C to +85°C | 20% to 95%RH | 1 to 2°C/min | Temperature Cycling Temp / Humidity Cycling / Storage Testing |
| Solid Walk-In Chamber | -60°C to +150°C | 20% to 95%RH | 4 to 5°C/min, or faster | Temperature Cycling Temp / Humidity Cycling Extreme Temp / Humidity Testing Altitude Testing |
| Steady State Walk-In Chamber | -20°C to +50°C | 20% to 95%RH | N/A | Constant Temperature Constant Temp / Humidity Storage Testing |
Walk-In Chamber Main Technical Parameters
| Model | KMHW-17 | |||||||
| Volume(m³) | 35.2CBM | |||||||
| Interior Dimensions | W3900 x H2100 x D4300mm | |||||||
| Exterior Dimensions | W5050 x H2350 x D4500mm | |||||||
| Safety Devices(standard) | No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection | |||||||
| Standard accessories | Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator | |||||||
| Control System | Balanced Temperature & Humidity Control System | |||||||
| Refrigeration system | Water Cooled | |||||||
| Semi-hermetic compressor, single stage or cascade refrigeration system, | ||||||||
| CFC free refrigerant ( HFC-507 and HFC-23 ) | ||||||||
| Controller | Panel | 7-inch LCD Touch panel, Chinese or English display selectable | ||||||
| Operation model | Program or fix point running | |||||||
| Memory capacity | 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles | |||||||
| Accuracy | Temp.:0.1% of F.S ± 1 digit Humidity:0.1% of F.S ± 1 digit | |||||||
| Input | Temp.: pt-100, Humidity: pt-100 or ～5V DCV | |||||||
| Comm.port | RS-232 or RS-485 ( Softawre is option) | |||||||
| Temp. range | Maximum: 80 ºC,120 ºC; Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC |
|||||||
| Humidity Range | 10%, 20%, 30% ~ 95% | |||||||
| Temp. constancy | ±0.5 ºC | |||||||
| Humidity constancy | ±2.5%R.H | |||||||
| Temp. uniformity | ±2.0 ºC | |||||||
| Humidity uniformity | ±5.0%R.H | |||||||
| Ambient Temp. | +5 ºC～+35 ºC | |||||||
| Wiring method | AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires | |||||||
| Heat up time | +20 ºC～+80 ºC, Within 60 min | |||||||
| Pull down time | +20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min | |||||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||||
| Exterior material | Baked Painting Steel Or Stainless steel ( SUS304) | |||||||
| Insulation material | Rigid polyurethane foam | |||||||
| Door size (mm) | Single wing: W800 x H1800; Double wing: W1600 x H1800; | |||||||
| Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available | ||||||||
KOMEG Temperature Humidity Test Chamber Features:
The refrigerating system is the core/heart part of the test chamber.
For enhance the whole refrigerating system performance, we use professional and advanced copper tube bending machine, this can decrease the welding points over 50%, and decrease right-angles of the tube, Also less welding points can reduce the resistance when the liquid flowing inside, to keep compressor working in higher efficiency, and better energy-saving.
And for welding the copper tube, we use Liquid Nitrogen protection welding technology, this can better protect the tube and keep the cooling system clean.
All this will do good to the compressor.
We use GEA Bock semi-hermetic compressor. According to our over 20 years experiences in this climatic test chambers field, GEA Bock Compressor has excellent performance in refrigerating effect and running stability; has good noise control, also energy-saving.
Widest test range, most customizable
The description is sourced from komegtech.com, for more detailes please refer to our website.
