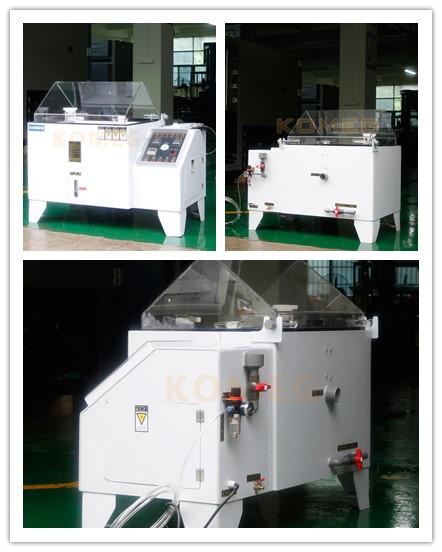

Touch Screen Salt Spray Corrosion Test Chamber With CE Guarantee AC 220V 50Hz
Touch Screen Salt Spray Corrosion Test Chamber With Guarantee And Good Price
Salt Spray Corrosion Test Chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, to test the corrosion resistance of products with anti-corrosive treatment.
| Specifications (Note: We reserve the right to change specifications without prior notice) | ||||
| Model | HL-160-NS | HL-120-BS | HL-90-BS | HL-60-SS |
| Interior dimensions(W*H*D)mm | 1600 X 500 X 1000 | 1200 X 500 X 800 | 900 X 500 X 600 | 600 X 400 X 450 |
| Exterior dimensions(W*H*D)mm | 2240 X 1500 X 1600 | 1410 X 1280 X 880 | 1460 X 1280 X 910 | 1130 X 1070 X 630 |
| Testspace Volume(L) | 800 | 480 | 270 | 108 |
| Salt Water Tank Volume (L) | 60 | 40 | 25 | 15 |
| Heater | 15KW+1KW | 11KW+1KW | 7KW+0.75KW | 3KW+0.75KW |
| Air compressor | 2HP | 2HP | 1/2HP | 1/2HP |
| Temp. range (Testing barrel) | 35±1℃～50±1℃ | |||
| Temp. range (Pressure barrel) | 47±1℃～63±1℃ | |||
| Test applicable | NSS, ACSS,CASS,CORK | |||
| Pressed Air Pressure | 1.00±0.01kgf/cm² | |||
| Spray Amount | 1.0~2.0ml/80cm²/h(Collect at least 16 hours, take the average) | |||
| Ambient Relative Humidity | More than 85%R.H. | |||
| PH Value | 6.5~7.2 3.0~3.2 | |||
| Spraying Manner | Programmable Spraying | |||
| Power | AC220V 1Φ 50Hz |
|||

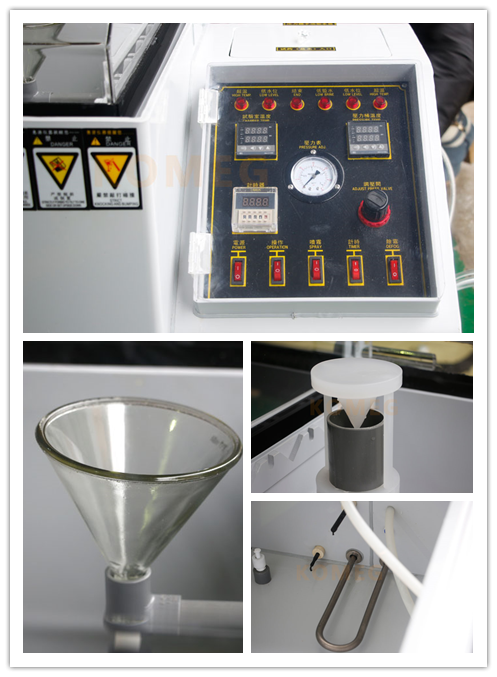

FEATURES:
1 Durable hard PVC construction, anti-corrosion, easy to clean.
2 Reservoirs with mixing system on stand.
3 Cabinet heated by water jacket, heating element from USA famous company.
4 Separate heating system, be apart from salt testing chamber to ensure accurate result and protect circuit.
5 Exposure zone lined with corrosion-resistant PVC sheets.
6 Clear cover allows viewing of test conditions.
7 Peaked cover prevents dripping of condensation onto samples.
8 Water seal and water level protection system.
9 Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
10 Automatic DI water fill to humidifying tower.
11 Digital temperature control and readouts.
12 Integral over-protection on all heaters.
13 Low water cut-off protection on humidifying tower.
27-year professional experiences environmental test solution provider since 1990
Supplier of many world top 500 plus 1-year warranties
20000 m2 factory operated by 30+ skilled workers
Customer experience oriented operating principle ensures you high added value
Any problems you meet in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
