Large-sized Walk-In Type Temperature (& Humidity) Chamber for Reliability Testing

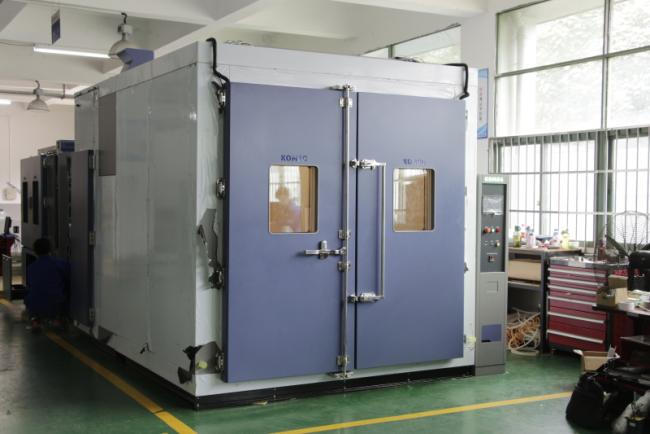

1. Walk-In Climate Test Chambers

KOMEG Environmental test chambers offering a large volume of test space to conduct temperature and humidity testing for large batches of products or large product, such as prototype evaluation, research & development testing, production testing, accelerated stress testing, reliability testing, failure analysis, and any other application where environmental simulation is needed. KOMEG manufactures both panel walk-in chambers and solid walk-in chambers and can be configured as temperature chamber or temperature humidity chamber.

2.  Main Technical Parameters

3.Application

Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc..

4. Description

Flexibility for structure

The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.

Widest test range, most customizable

5. Meet the standard

● GB-2423. 1-89(IEC68-2-1)Test A: Low Temperature Test

● GB-2423. 2-89(IEC68-2-2)Test B: High Temperature Test

● GJB360. 8-87(MIL-STD. 202F) High Temperature Life Test

● GBJl50. 3(MIL-STD-810D) High Temperature Test

● GJBl50. 4(MIL-STD-810D) Low Temperature Test

● GB2423. 3-93(IEC68-2-3)Test Ca: Constant Heat Test

● GB2423. 4-93(IEC68-2—30)Test Db: Damp Heat Alternative Test

● GJBl50. 9-93(MIL-STD-810D) Damp Heat Test

6. Optional accessories

●Cable Port: Two size of cable port is available: Φ50mm, Φ100mm, Φ120mm

●Double door

●Pass room: Provided to avoid disturbance of atmospheric temperature and humidity while opening the door.

●Floor reinforcement: Can be fixed if heavy specimen placed in the chamber for test.

●Carry-in inclined platform: Provided below the door to facilitate moving of specimens in and out through the door.

●Entire ceiling blow-out duct

The extremely wide air inlet reduces the airflow rate (down to apprrox.0.5m/s)

●Dehumidifier

The rotation regenerating dehumidifier (M-300)ensures precise control of low humidity (21℃,23%RH)for electrostatic reliability tests.

●Temperature and humidity recorder

100mm width recording paper with 6 dots

180mm width recording paper with 12 dots

●Status indication lamp

Provide to signal chamber status and warnings when normal running, a malfunction running or stand by occurs.

●Water purifier

Provided to keep the humidifier heater free from scale and ensure the supply of water to humidifier.

●Power socket

●Air cooled or water cooled type condenser

After-sale Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
