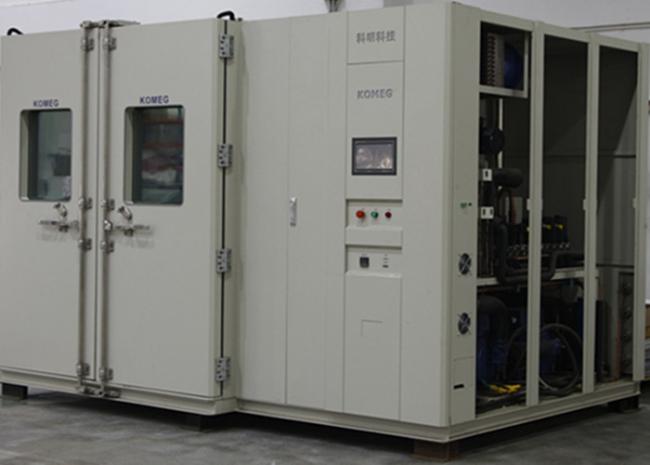

45CBM Walk In Stability Climatic Test Chamber Air Circulation Environmental For Vehicle
Walk in stability Climatic Test Chamber Hot Air Circulation environmental rooms for Vehicle
Technical Specification
| Model |
KMHW-45
|
| Volume(m³) |
45CBM
|
| Interior Dimensions | W500xH300xD300cm |
| Inside material |
stainless steel
|
| Safety Devices(standard) | No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection |
| Standard accessories | Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator |
| Control System |
Balanced Temperature & Humidity Control System
|
| Refrigeration system |
Water Cooled |
| Controller |
Panel: 7-inch LCD Touch panel, Chinese or English display selectable
|
| Temp. range |
Maximum: 80 ºC,120 ºC;
|
| Humidity Range |
10%, 20%, 30% ~ 95%
|
| Temp. constancy |
±0.5 ºC
|
| Humidity constancy | ±2.5%R.H |
| Temp. uniformity |
±2.0 ºC
|
| Humidity uniformity | ±5.0%R.H |
Chamber structure
|
Insulation material |
Glass wool |
|
Heater |
High quality nickel-chromium alloy wire electric heaters |
|
Temperature Controller |
ST-570 South Korea imported thermostat ST-570 |
|
Temperature body |
K thermoelectric |
|
ventilator |
Ventilator 1 type, displacement of 130 ~ 250m3 / h (from the exhaust fan to the duct outside the laboratory to be handled by the customer) |
|
Protection System |
Over-temperature protection, motor overload protection, buzzer, fault indicator, no fuse switch. |
|
Competitive Advantage
1. Have 27 years experience on environmental chambers and standard environmental chambers, Specializing in environmental simulation equipment, ess, walk-in, environmental stress screening, altitude chambers, temperature chambers, temperature and humidity chambers, environmental test chamber manufacturers, humidity chambers, humidity simulation, temperature cycling, thermal test chambers, solar panel test chambers, thermal shock, climatic/climate chambers, vibration test chambers, drive-in chambers, laboratory test chambers, environment test rooms.
2. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.
3. NO 1 BEST SELLER
KOMEG brand of temperature and humidity test chamber is the ideal simulation test chamber for all heat and cold testing between -40 ºC and 180 ºC temperature range. Well-suited for reliability testing based on current test standards in the temperature range of -40 °C to 150 °C and 10% to 98% RH.Meet all requirements for extreme testing and low temperature alternating climate profiles from -70 °C - 150 °C with humidity. |
