IPX3 Universal Water Mist IP Test Equipment with 304 Stainless Steel Surface
IPX Universal Water Mist IP Test Equipment with 304 Stainless Steel Surface
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 1480*1300*1850mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 500kg
STANDARD FEATURES
| Item | Specification |
| Internal dimension(W*D*H) | 1000*1000*1000mm(can be customized) |
| External dimension(W*D*H) | 1300*1100*1700mm |
| Oscillating tube | Radius 400mm |
| Oscillating angle |
IPX3: spray ±60° from vertical line to each side, total 120° |
| Oscillating speed |
IPX3: 2*120° for 4s |
| Spray nozzle |
Diameter: 0.4mm, removable |
| Distance between two nozzles | 50mm |
| Turntable dimension | 500mm |
| Turntable rotation speed | 1-3 cycles/min |
| Water flow of each nozzle | 0.07 L/min +5% |
| Test duration | 1~999,999min, adjustable |
| Pressure gauge | 80-150Kpa |
| Material | Chamber - Stainless steel ; Spray nozzle - Brass |
APPLICATIONS& FEATURES
1. To be used in testing external lighting and signal device and vehicle lamps shell protection.
2. Cyclic test includes conditions: heating, watering
3. The internal chamber has lighting device
4. Rain time, rain interval time and rainfall strength can be adjusted and controlled separately.

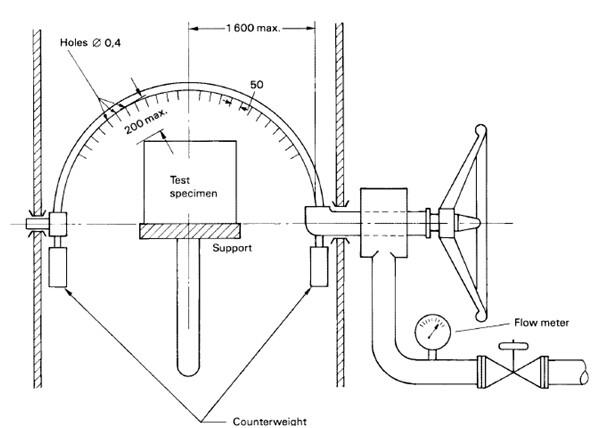

DESIGN DRAWING
