High resolution SDI 1080P HD mobile DVR support GPS G-sensor WIFI 3G 4G
4ch SDI 1080P HD mobile DVR with free CMS software, GPS, G-sensor, WIFI, 3G, 4G optional
Main Features:
- H.264 video code, less capacity file dealing with high resolution video;
- 4-CH A/V in, 1CH AV out. Audio and video synchronous processing;
- 8-48V wide voltage applicable for various types of vehicles.
- 4CH alarm in, 1CH alarm out.
- Dual shockproof- best product structure design
- CIF, HD1 and D1 video formats with dual frame rate.
- Motion detection, various alarming ways: manual record, time record, motion detection record, alarm and abnormal alarm record
- Support either or both HDD and SD storage.
- FREE CMS and server, CE/FCC/RoHS accept.
Specifications:
|
Items |
Device parameters |
Performance index |
|
Name |
Product Name |
4 Channel Mobile DVR(HDD Storage) |
|
System |
Operation System |
Linux |
|
Operation Interface |
Graphical Interfaces, Chinese/English optional |
|
|
System Privileges |
User Password |
|
|
Video |
Video Input |
4ch SDI Independent Input: 1.0Vp-p,75Ω.Both B&W and Color Cameras |
|
Video Output |
1 Channel PAL/NTSC Output, 1.0Vp-p,75Ω, Composite Video Signal |
|
|
Video Standard |
PAL:25frames/Sec;NTSC:30frames/Sec |
|
|
System Resources |
PAL:100 Frames; NTSC:120 Frames |
|
|
Audio |
Audio Input |
Four Channels Independent Input 600Ω |
|
Audio Output |
1 Channel(4 Channels Can Be Convert Freely) |
|
|
Basic Output Level |
1.0—2.2V |
|
|
Distortion Plus Noise |
≤-30dB |
|
|
Audio Compression |
ADPCM |
|
|
Digital Processing & Storage |
Image Compression |
H.264 Fixed Code Stream |
|
Image Format |
4*1080P(1920*1080) |
|
|
Video Stream |
1.0M-6.0Mbit/s |
|
|
Video Taking Up Of Hard Disk |
450M-2.6GByte/hour |
|
|
Playback Resolution |
1or4*1080P |
|
|
Audio Bitrate |
4KByte / s / channel |
|
|
Audio Taking Up Of Hard Disk |
14MByte / hour / channel |
|
|
HDD Storage |
Support Max 2TB |
|
|
Image Quality |
Eight Grades to Choose |
|
|
Alarm |
Alarm in |
8 Channels Independent Input. High Voltage Trigger |
|
Alarm out |
2 Channels Independent output |
|
|
Network Interface |
Wire line Access |
Can Expand One RJ45 Ethernet Port, support 3g, gps,wifi |
|
3G |
Can Expand One WCDMA or CDMA2000 Module Inside |
|
|
GPS Interface |
GPS |
Can Expand GPS Module Inside |
|
Extend Interface |
RS232 |
Extensible,it is convenient to connect with other vehicle equipment |
|
RS485 |
Extensible,it is convenient to connect with other vehicle equipment and PTZ Camera |
|
|
Others |
Can Expand Intercom,G-Sensor Module Inside |
|
|
Others |
Power Consumption |
DC8-36V 5% ≤12W |
|
Working Temperature |
-20℃ ~ +85℃ ≤80% |
|
|
Clock |
Built-In Clock, Calendar |

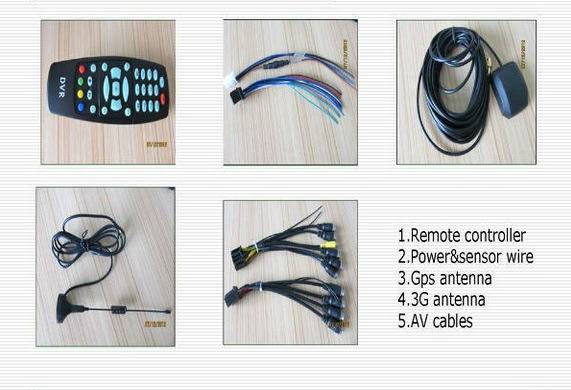

Accessories:
Software:
