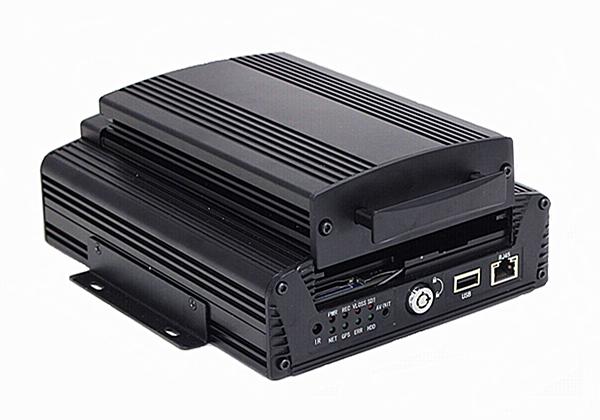

2TB HDD 3G / 4G WIFI GPS G - sensor Car Mobile DVR 4CH AHD 720P Vehicle MDVR

Price Negotiable

Price: negotiation

MOQ: 1 Unit

Delivery Time: 5 ~ 8 work days

Brand: RECODA

Product Description

2TB HDD 3G / 4G WIFI GPS G-sensor Car Mobile DVR 4CH AHD 720P Vehicle MDVR

FEATURES

^{-Supports 4 channels AHD 720P

-Supports SD Card / HDD mirror recording

-Supports GPS for location tracking

-Supports WIFI for video files download (Optional)

-Built-in 3G/4G for live view and remote management (Optional)

-Supports USB2.0 high speed backup

-Support PC and mobile(Android and iPhone) client remote monitoring}

INTRODUCTION

^{H.264 Compression,clear image,1~4CH video input,1 composite video output.}
^{Power-off protection by accident:UPS special technology makes DVR work 3 to 5 seconds when cut off the external power supply, to ensure complete video data and avoid file corruption, which is convenient to check accidents.}
^{GPS,G-sensor acceleration sensor, speed sensor, temperature sensor.}
^{Digital idea intercom function.}
^{video:100f/s (PAL);120f/s (NTSC).Video resolution:CIF/ HD1/ D1 optional,support up to 2CHD1, 2CH CIF.}
^{G.726 audio compression format, 4CH audio input, 1CH audio output.}
^{6CH alarm input (level input), 1CH alarm output (relay output).}
^{Communication Interface:RS232 ,RJ45.}
^{Recording modes: Power-on recording, timing recording, alarm recording, manual recording.}
^{Video file format: ASF, use VLC player, or playback by software package, 1CH or 4CH simultaneous playback.}
^{Data Storage: 2.5-inch hard drive and SD card. Support hard disk heating, use removable hard disk cartridges.}
^{Short start time: DVR goes to normal operating mode within 25 seconds when it is started. It supports key start/shutdown DVR, timer start/shutdown DVR, delay shutdown DVR.}
^{10-36VDC wide voltage input for all kinds of vehicles; DC 5V/0.5A, 12V/2A output.}

Parameters

Operation system			Linux
GUI			Setup system parameters with remote controller
Security management			Support user password, supervisor password management; support encryption transmission
Video	Dual stream		Support
	OSD		Time & date, vehicle ID, GPS etc
	Compression		H.264. Hisilicon high performance processor is applied.
	Preview function		Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function
	Video frame rate		PAL: 100 frame/sec, up to 25 frame/sec for single channel NTSC: 120 frame/sec, up to 30 frame/sec for single channel
	Video resolution		CIF, HD1, D1 adaptive, support up to 2 channels D1 + 2 channels CIF
	Video quality		Level 1 to 5 video quality adaptive, level 1 best, level 5 lowest
	Video Bit Rate		CIF: 256Kbps ~ 1.5 Mbps, 8 levels of bit rate optional HD1: 600Kbps ~ 2 Mbps, 8 levels of bit rate optional D1: 800Kbps ~ 3Mbps, 8 levels of bit rate optional
Audio	Audio input/output		4-channel input; 1-channel output
	Compression		G.726
Recording	Storage media		Support one 2.5 inch hard disk and one SD card with 128GB maximum capacity
	File format/system		ASF/ FAT32
	Recording mode		Startup recording by default, support timing, alarm & event trigger, manual recording
	Recording search		Search recording video files by time, type, storage device, etc.
	Recording playback		Support local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time
			Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time
Alarm	Alarm input		6-channel alarm input
	Alarm recording		Pre-recording function, 15 seconds pre-recording of alarm, recording time after alarm can be adjusted in between 30 sec ~ 30 min
	Alarm output		1-channel alarm output
	Storage space		Support the setting of remain storage space alarm function
	Functional alarm		Overspeed alarm, acceleration alarm, motion detection alarm
Communication interface			RS232, RJ45 10M/100M self-adaption Ethernet interface
Wireless transmission (optional)			Built-in 3G / 4G-LTE; Compatible with GPRS, EDGE; Built-in Wi-Fi module;
GPS			Support internal GPS module
Data remote transmission			Support 3G / Wi-Fi transmission, Wi-Fi priority transmission strategy, remote downloading;
PTZ control			Support PTZ control function by local remote controller or client software;
Parameter configuration			Support parameter configuration
G-sensor			Built-in
System upgrade			Support SD card / Hard disk / Remote upgrade
Power supply & consumption		Power supply management	ACC startup/shutdown; Hard disk lock startup/shutdown; Delay shutdown; Timing startup/shutdown
		Input voltage	DC:+10V ~ +36V
		Output voltage	+12V/4*0.5A, +5V/0.5A
		Power-off protection	Patent UPS power-off protection technology, ensure the integrality of recording data when accidental power failure occurs
		Power consumption	Less than 10W in normal working state; less than 0.5W in standby mode
Working environment		Temperature	Normal: 0ºC ~ +60ºC Hard disk pre-heating: -25 ºC ~ +60 ºC
		Humidity	10% to 95%
