Private Vehicle 360 degree Full View 4 Camera Car DVR 3G / GPS Monitoring System

The system comes with the SD Card Mobile DVR with 3G & GPS optional and 4 cameras ( front, back ,left and right) 360 degree full views to record in real time. Also you can install the camera inside the car, for monitoring the surrounding and inside situation of your vehicle.

DVR FEATURES:

• MINI size Design Car Mobile DVR
• 4-channel Accident and On&off Recording
• GPS tracking with Google map
• 32 GB SD card storage
•
• 4 channel video input
• playback Resolution: CIF/ 2CIF/ D1 optional, maximum support 1CH of D1 & 3CH of CIF .
• Support SD card as the storage medium (max64GB)
• support manual, timer, alarm, motion detection triggered recording ;

Specifications:

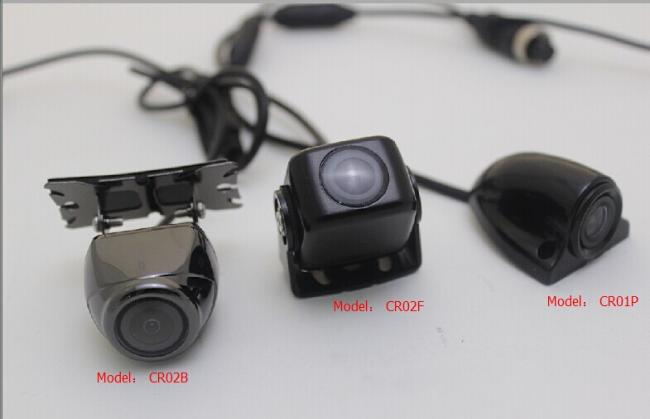

Cameras Description:

Model: CR02F ( Front / Rear View Camera )

• TV system: PAL/NTSC (Optional)
• Sensor: CMOSⅢlow illumination
• IP68 Grade Waterproof;
• 140 wide angle car rear view camera
• Good night vision
• Voltage: DC 12V
• Resolution(TV lines) : 480
• Minimum illumination: 0-1lux (0Lux when IR is ON)
• Operating temperature: -20-70 °C

Model: CR01P (Side View Camera )

• 1/4'' CMOS SENSOR
• High resolution 480 TV Lines
• Low illumination requirement –0.3 LUX
• User adjust reverse / Normal mirror image
• 140 Degree Wide Angle View
• Voltage: DC 12V
• Operating temperature: -20-70 °C

Model: CR02B ( Back View Camera )

• TV system: PAL/NTSC (Optional)
• Sensor: CMOSⅢlow illumination
• IP68 Waterproof;
• 140 wide angle car rear view camera
• Good night vision car rear view camera
• Voltage: DC 12V
• Resolution 420TV lines
• Minimum illumination: 0-1lux (0Lux when IR is ON)
• Operating temperature: -20-70 °C
• Video Output: 1.0V pp at 75ohm

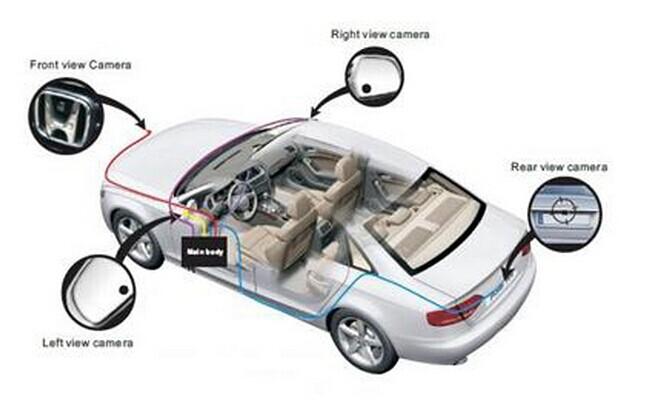

Private Vehicle 360 degree Full View 4 Camera Car DVR 3G / GPS Monitoring System Installation
