Heavy Duty Tractor Dual SD Card 4 CH H.264 Mobile Vehicle DVR with GPS 3G WIFI
Price:
negotiation
MOQ:
1 Unit
Delivery Time:
3 ~ 8 work days
Brand:
RECODA
Product Description
Dual SD Cards support 4 CH h.264 Mobile Vehicle DVR with GPS 3G WIFI for Bus Car
Features:
- H.264 video compression,Linux operation system,dual streaming
- Built-in GPS,WIFI Module, G-sensor
- 3G(WCDMA/EVDO)/WIFI/GPS modules optional
- Built-in WIFI Module, G-sensor
- RS232, 4 alarm input / 1 alarm out
- Remote voice communication to driver, Remote messages,Over speed alarm
Description:
- 4 channel (2D1+2CIF / 4CIF)
- H.264 video compression, Linux operation systems, dual streaming
- Digital watermark
- Dual SD cards storage,max 64GB for each
- 3G(WCDMA/EVDO)/WIFI/GPS modules optional
- Motion detection
- 8 seconds power off delay for data protection, prevent data lost and file destroyed by instant power-off
- RS485, RS232,Canbus, speed input interface
- Support peripheral device extension, e.g. control panel, bus stops announcement
- Black box for vehicles , recording speed, position, acceleration, temperature, brakes, backing up, turns, alarms and other important information
- DC8V~36V wide voltage power supply, industrial standard embedded design, aluminum metal shell, low power consumption
- Operating temperature -25°C to +85°C
Specifications:
| Operating System | Linux |
| Video encode standard | H.264 |
| Graphics Operation Interface | System parameters can be set through external display and remote controller |
| Security Management |
2 level management user password, administrator password, support encrypted transmission |
| Video Input | 4-channel video input |
| Video Output | 1channel video output; 1.0Vp-p, 75Ω |
| Video Compression | H.264. Hisilicon hi-performance processor. |
| Frame Rate | PAL: 100FPS, up to 25FPS/CH; NTSC: 120 FPS, up to 30 FPS/CH |
| Video Resolution | CIF, HD1 &D1 for option, supporting 2CH D1+ 2CHCIF |
| Audio Input & Output | 4CH input, 1CH output |
| Audio | G.726 coding |
| Intercom | 2 way live intercom supported |
| Recoding Storage | 2PCS SD cards, Max 128GB, with cycle recording. |
| File System | ASF/FAT32 |
| Video Strategies | Default record by startup, time recording&recording triggered by alarm& manual recording optional |
| Video Search | by time, type, storage device and other conditions |
| Alarm Input & Output | 4-CH on/off signal alarm input, 1-CH on/off alarm output |
| Alarm Recording | Prerecording15S before alarm, duration of recording upon alarm is optional from 30s ~ 30min |
| Communication Ports | RJ45 10M/100M Ethernet port , RS232 , RS485 |
| WIFI | Embedded Wi-Fi module; |
| GPS | Support external GPS |
| 3G Module | WCDMA/EVDO |
| PTZ Control | Support PTZ control realized by local |
| Power supply | DC 8-36V |
| Weight | 1.02kg |
Dual SD Cards support 4 CH h.264 Mobile Vehicle DVR with GPS 3G WIFI for Bus Car

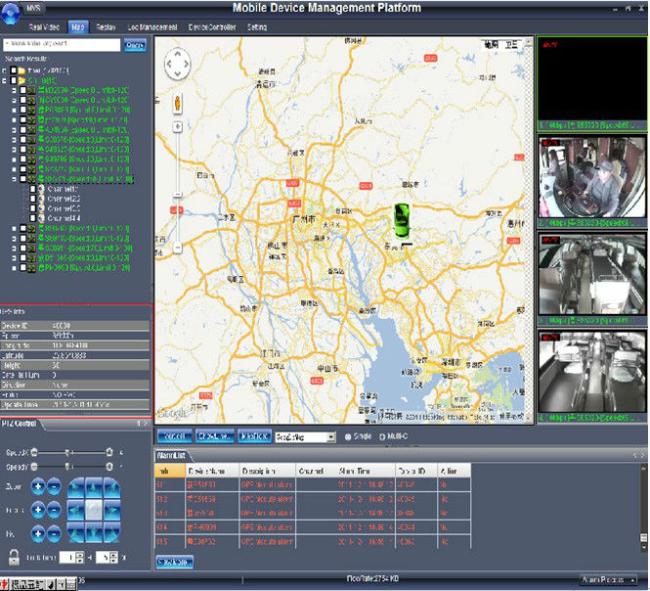

Client Software
Application:
