3G WIFI 4 Channel Mobile SDI 1080P Car DVR Support Real - time Recording GPS Tracking
4Ch SDI 1080P Car DVR With 3G WIFI Support Real - time Recording GPS Tracking
Features:
● Standard H.264 video compression, supports dual stream network transmission
● Support max 2TB 2.5 inch HDD
● Supports real-time remote view through 3G/4G/WIFI(optional)
● Supports 1080P recording resolution
● Supports transmitting audio via network
● Supports pentaplex operation: preview, record, playback, backup, network transmission
● Supports time-lapse recording after the car is powered off, Self recovery after power reconnected
● Supports recording and displaying the license plate number
● With digital zoom capabilities when previewing the video
● Supports PTZ control via built-in RS-485 port
● Supports backup and upgrade with USB flash disk & USB hard disk
Specifications:
|
Items |
Device parameters |
Performance index |
|
Name |
Product Name |
4 Channel Mobile DVR(HDD Storage) |
|
System |
Operation System |
Linux |
|
Operation Interface |
Graphical Interfaces, Chinese/English optional |
|
|
File System |
Proprietary Format |
|
|
System Privileges |
User Password |
|
|
Video |
Video Input |
4ch SDI Independent Input: 1.0Vp-p,75Ω.Both B&W and Color Cameras |
|
Video Output |
1 Channel PAL/NTSC Output, 1.0Vp-p,75Ω, Composite Video Signal |
|
|
Video Display |
1 Or 4 Screen Display |
|
|
Video Standard |
PAL:25frames/Sec;NTSC:30frames/Sec |
|
|
System Resources |
PAL:100 Frames; NTSC:120 Frames |
|
|
Audio |
Audio Input |
Four Channels Independent Input 600Ω |
|
Audio Output |
1 Channel(4 Channels Can Be Convert Freely) |
|
|
Compression |
ADPCM |
|
|
Digital Processing & Storage |
Image Compression |
H.264 Fixed Code Stream |
|
Image Format |
4*1080P(1920*1080) |
|
|
Playback Resolution |
1or4*1080P |
|
|
HDD Storage |
Support Max 2TB |
|
|
Image Quality |
Eight Grades to Choose |
|
|
USB Interface |
Host Access |
Can Expand One For USB Disk Backup |
|
Network Interface |
Wire line Access |
Can Expand One RJ45 Ethernet Port |
|
Wifi |
Can Expand One Wifi Module Inside |
|
|
3G |
Can Expand One WCDMA or CDMA2000 Module Inside |
|
|
GPS Interface |
GPS |
Can Expand GPS Module Inside |
|
Extend Interface |
RS232 |
Extensible,it is convenient to connect with other vehicle equipment |
|
RS485 |
Extensible,it is convenient to connect with other vehicle equipment and PTZ Camera |
|
|
Intercom |
Can Expand Intercom Module Inside |
|
|
G-Sensor |
Can Expand G-Sensor Module Inside |
|
|
Others |
Power Consumption |
DC8-36V 5% ≤12W |
|
Working Temperature |
-20℃ ~ +85℃ ≤80% |
|
|
Clock |
Built-In Clock, Calendar |

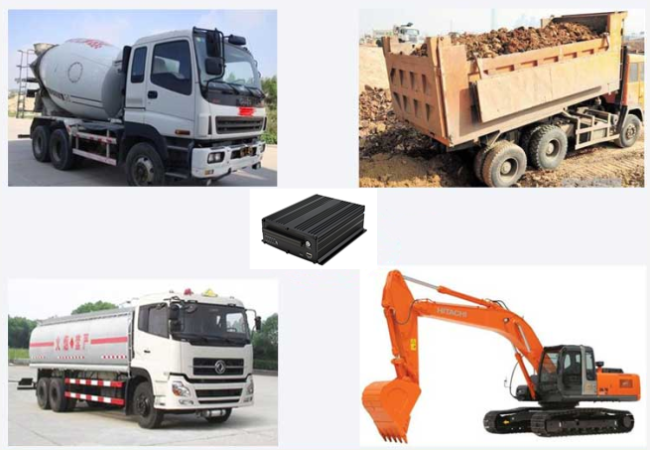

Applications:

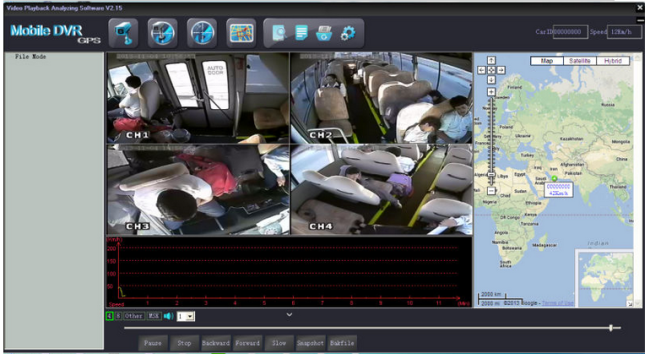

Software:
