4Ch SD Card HD 1080P vehicle DVR H.264 Car Alarm Monitoring System Solution
4Ch SD Card 1080P HD Mobile DVR H.264 Car Alarm Monitoring System Solution
Main Features:
*1. High video quality based on the H.264 High Profile.
*2. 1080P High Definition resolution recording. The resolution for each channel is 1920x1080
*3. Compact size, much easier for installation.
*4. Support WIFI(AP & Client) with 802.11/b/g/n (300Mbps).
*5. Support from 8VDC to 32VDC, applicable for 12VDC and 24DC vehicles.
*6. The recorder provides each camera with stable +12V DC power; DVR can detect the short cut on power circuit.
*7. Can use ignition to control the power. Configurable power timer after ignition is off.
*8. Support automatic record, event trigger record, schedule record.
*10. Support 3 sensors,can record brake,return, right/left turn light status into the record file.
*11. Use avi format for record file. Compatible with different player software.
*12. Support FAT32 file system, record file can be read directly on Windows, Linux.
*13. Support 3G/4G+GPS real time video monitoring (via PC Client, IOS or Android Device).
Product Description:
| Item | Parameter | Description | |
| System | Language | English | |
| Interface | IE Interface | ||
| Security | Administor and user password protected | ||
| Video | Video Compression | H.264 High Profile | |
| Audio | Audio Input | 1/2/4 channel audio input | |
| Recording mode | Audio and video synchonize | ||
| Compression | AAC | ||
|
Storage
|
Storage | SD card, USB2.0 port(For flash disk or hard drive) | |
| Format | AVI | ||
| Sensor | Sensors | 1 speed sensor, 1 ignition sensor, 3 common use senseors | |
| Communication | WiFi,GPS | 802.11b/g/n, max 300M | |
| Network | RJ45,10M/100M Lan port | ||
| COM | Two RS232 connector and one RS485 connector | ||
| Software | Player | ||
| Firmware update | Via SD card or USB disk | ||
| Power | Power input | DC: +8V ~ +36V | |
| Power output | +12V @1.5A, +5V @1A | ||
| Power consumption | Less than 5W. Less than 0.1W in standby mode | ||
| Working temperature | -10°C ~ +60°C | ||
| Size | 9.2CM(Width)×2.0CM(Height)×11.5CM(Depth) | ||

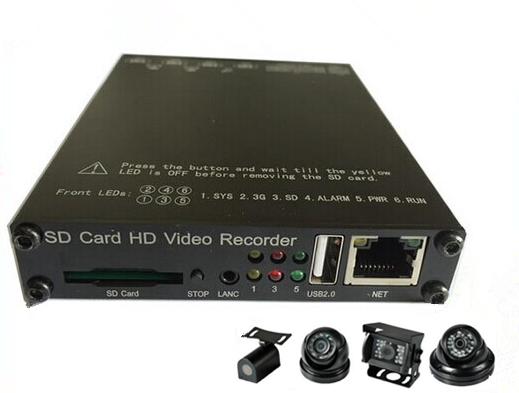

Product's pictures:
Aplication:
1. Bus/school bus 2.Coach 3.Public transportation 4.Logistics/Truck 5.Police car

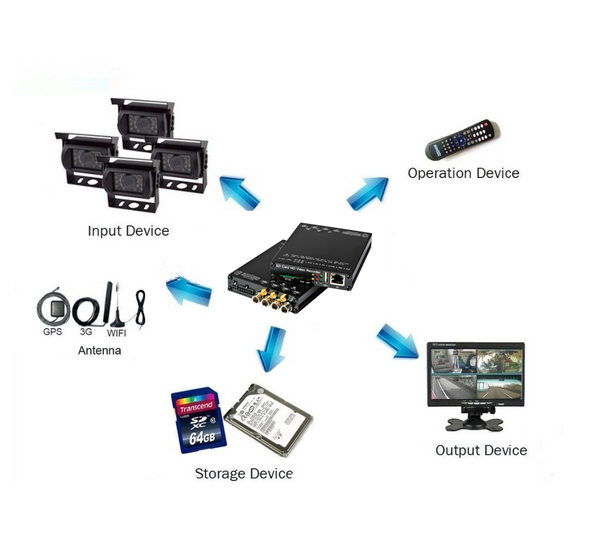

System connection diagram:
