Portable Mini 4Ch SD Card Recording HD Mobile DVR With 3G GPS WIFI For Taxi

Portable Mini 4Ch SD Card Recording HD Mobile DVR With 3G GPS WIFI For Taxi

The SDVR series mobile digital video recorder is a compact, full-featured recording system

that uses a SDcard as a storage device. The recorder unit and associated accessories are

specifically designed for operation in a mobile environment. The SDVR system, used in

conjunction with the cameras, records up to four channels of full-motion video and audio

data to a Class 4 (minimum) SD card. The firmwaredriven menu system provides a simple

method for configuring the unit’s operation as well as searching for and viewing previously

recorded AV records.

Features:

1. High video quality based on the H.264 High Profile.

2. 4 Ch 1080p High Definition resolution recording. Each channel is 1920x1080

3. Compact size, much easier for installation.
4. Support from 8VDC to 32VDC, applicable for 12VDC and 24DC vehicles.
5. The recorder provides each camera with stable +12V DC power; DVR can detect the short cut on power circuit.
6. Can use ignition to control the power. Configuable power timer after ignition is off.
7. Support automatic record, event trigger record, schedule record.
8. Can record speed with audio and video. Support overspeed alarm.
9. Support 3 sensors, record brake, return, right turn, left turn light status into the record file.

10. Use avi format for record file. Compatiable with different player software.

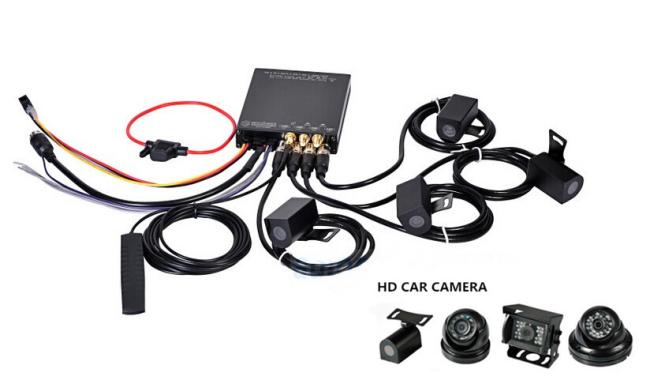

Product's pictures:

Aplication:

1. Bus/school bus    2.Taxi   3.Public transportation   4.Logistics   5.Police car

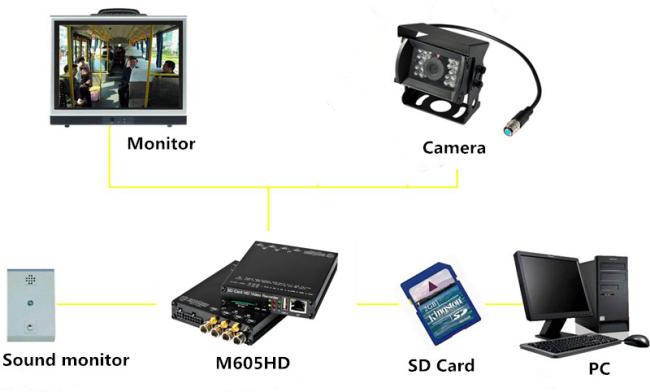

System connection diagram:
