GPS 4G Wifi 720P AHD SD Card Vehicle Mobile DVR Remote Control 24 Hours Monitor
With GPS 4G Wifi 720P AHD SD card Mobile DVR High Definition Remote Control 2015 hot for Truck Bus Taxi 24 Hours Monitor
Main Features:
- H.264 Video Compression,Support 4CH 720P AHD Camera input;
- Exclusive pre-allocated file system, solve the file fragmentation / SD lost / file garbled etc issue,protect data file;
- 10-36V Wide Voltage, Lower power consumption;
- SD Card Storage (Dual SD Card, each max 128GB);
- Support GPS/BD/G-sensor module;
- High vibration Aviation plug;
- Smart GUI Interface, Easily Setting;
Product Feature:
- Support 12VDC/2.5Amp output voltage, power supply for Camera/Screen etc;
- Dual SD Card Support, each max 128GB,,protect DVR from shock & Dust damage;
- Watchdog abnormal restart function, protect SD Card and Record;
- Exclusive File System protect data completeness,prevent SD Card fragment;
- ACC Delay off,can set 24 hours;
- Auto Record/Manual Record/Alarm Record etc working mode to meet different requirements;
- Show Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management;
- HIS Solution,H.264 Compression, Dual Stream,4CH Video and 4CH Audio input;720P AHD; Camera & Normal Analog Camera input compatibility;
- High quality real time recording, 720P/CIF/HD1/D1 Optional, quality adjustable;
- Professional Car Power Design,10-36V wide voltage,Provide reverse voltage/overload/short circuit protection, to meet kinds of car application;
- Support GPS/BD G-sensor Optional;
- 3CH Alarm input(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;
- 1CH Alarm Output;
- Support picture snap when alarm;
- Stability Aviation plug, easily connecting and high shock proof;
- Be Customized according your request.
Product Parameter:
|
Item |
Parameter |
|
|
OS |
Linux |
|
|
Language |
Chinese/English/Customized |
|
|
Video Compression |
H.264 |
|
|
OSD |
Overlays information such as date time |
|
|
GUI |
Graphical User Interface |
Setup system parameters with the |
|
Video Record System |
Video Input |
4CH 720P AHD input,aviation connector, |
|
Video Output |
1 CVBS, 1.0Vp-p, 75Ω,Aviation, Support 1CH Full Screen,4CH Screen |
|
|
Preview |

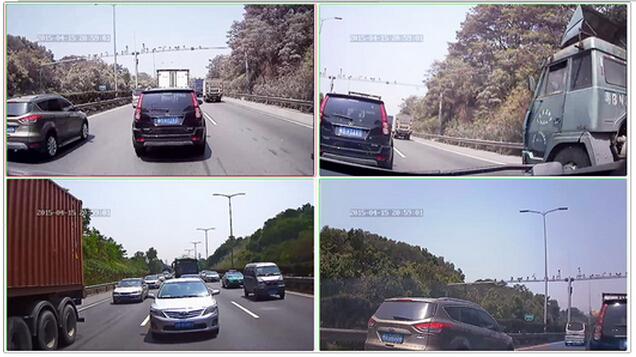

Support 1 channel and 4 channels preview., Support Manual |
|
|
Resolution |
720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1 |
|
|
Video Quality |
1-4 levels, 1 is the highest level. |
|
|
Video Standard |
PAL: 100f/s , CCIR625 line,50field; |
|
|
Record Mode |
The default setting is auto recording |
|
|
Audio |
Audio Input |
4CH ,Aviation Plug |
|
Audio Output |
1CH,Aviation Plug |
|
|
Compression |
G.726 compression, 8KB/s speed |
|
|
Alarm Input |
3Ch Alarm Input, kinds of alarm linkage support |
|
|
Alarm Output |
1CH Alarm Output |
|
|
Position |
Support Built GPS/BD Module |
|
|
G-Sensor |
Support G-sensor |
|
|
Storage |
SD |
Dual SD Card,each max 128GB SD Card |
|
Upgrade |
Support SD Card updating |
|
|
File Format |
.264 |
|
|
File System |
Special FAT32 File System |
|
|
Video Playback |
Video Search |
Search By Record Time/Record Type etc |
|
Playback |
Max support 4CH Replay /Stop/Fast/ |
|
|
Support forward and backward play at the speed of: x 2,x4,x8,x16. |
||
|
Voltage & Power |
Power Management |
Wide Voltage.Support Timed/Delay off |
|
Voltage Input |
DC:+10V ~ +36V |
|
|
Voltage Output |
+12V@2.5A,+5V@2.5A |
|
|
Power Consumption |
Normal Working ＜5W |
|
|
Working Environment |
Temperature |
-20℃ to +70℃ |
|
Humidity |
20% to 80% |
|
|
Security |
Password |
User/Admin 2 Level Different Password |
|
others |
Size |
112(W) x36(H) x138(D) mm |
|
Net Weight |
360g |
|
