4G realtime WIFI GPS vehicle truck bus car DVR / Mobile DVR with AHD 720P
4G realtime WIFI GPS vehicle truck bus car DVR / Mobile DVR with AHD 720P
Main Features:
1. Embedded Linux system
2. H.264 Compression
3. Support 4 channel real time recording
4. Support dual max 64GB SD card, Supports SD card overwritten by days
5. 4 channel CIF/HD1/D1 recording
6. Special video format and password-protection keep data away from destroy
7. Supports time-lapse recording after the car is powered off
8. Supports PTZ control
9. With 3G/4G+WIFI+GPS functions (optional)
10. Built in G-sensor module
Detail Parameter:
Item | Parameter | |
OS | Linux | |
Video Compression | H.264 | |
OSD | Overlays information such as date time and vehicle ID | |
GUI | Graphical User Interface | Setup system parameters with the remote control. |
Video Record System | Video Input | 4CH 720P AHD input,aviation connector, 1.0Vp-p, 75Ω |
Video Output | 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen | |
Resolution | 720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1 | |
Video Quality | 1-4 levels, 1 is the highest level. | |
Video Standard | PAL: 100f/s , CCIR625 line,50field; | |
Record Mode | The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. | |
Audio | Audio Input/Output | 4CH ,Aviation Plug, 1CH,Aviation Plug |
Compression | G.726 compression, 8KB/s speed | |
Alarm Input/output | 3Ch Alarm Input, kinds of alarm linkage support,1CH Alarm Output | |
Others | Support 3G GPS WIFI, G-sensor | |
Storage | SD | Dual SD Card,each max 128GB SD Card loop recording |
Upgrade | Support SD Card updating | |
File Format | H.264 | |
File System | Special FAT32 File System | |
Video Playback | Video Search | Search By Record Time/Record Type etc |
Playback | Max support 4CH Replay /Stop/Fast/Slow at same time | |
Support forward and backward play at the speed of: x 2,x4,x8,x16. | ||
Voltage & Power | Power Management | Wide Voltage.Support Timed/Delay off |
Voltage Input/Output | DC:+10V ~ +36V / +12V@2.5A,+5V@2.5A | |
Power Consumption | Normal Working ＜5W | |
Working Environment | Temperature | -20℃ to +70℃ |
Humidity | 20% to 80% | |

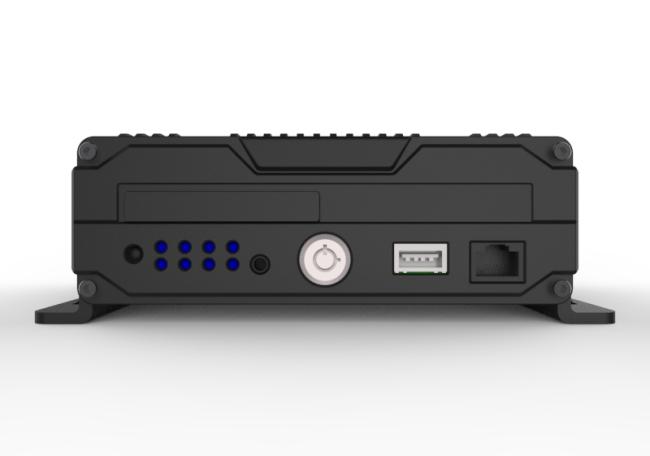

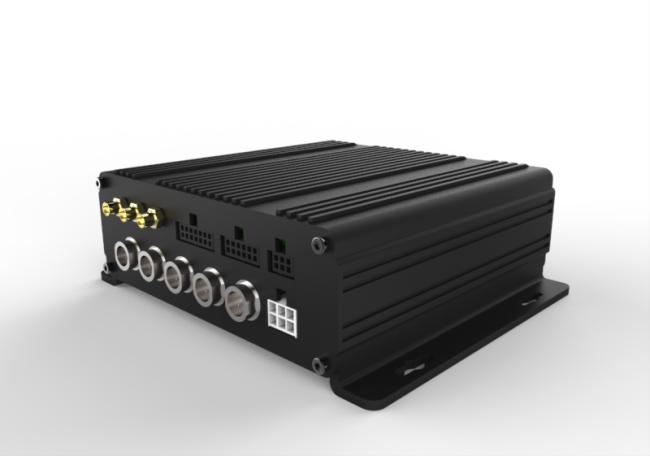

Product Pictures:
