China 4CH 3G / 4G Live View Hard Disk Analog HD Mobile DVR with GPS WIFI AHD DVR for sale

4CH 3G / 4G Live View Hard Disk Analog HD Mobile DVR with GPS WIFI AHD DVR

Price Negotiable

Price: negotiation

MOQ: 1 Unit

Delivery Time: 5 ~ 8 working days

Brand: RECODA

Product Description

4CH 3G / 4G Live View Hard Disk Analog HD Mobile DVR with GPS WIFI AHD DVR

Main Features:

8V~36V Wide Range Power Input;
Hybrid networking mixed with traditional and HD analog
4 Channel Full HD720P Realtime Video/ Audio Recording;
Supports 2TB Hard Disk & 128GB SD Card at the same Time (maximum);
Motion Detect/ G-Sensor Alarm Record;
6 I/O Alarm Input & 1 Alarm Output;
RJ45 / RS232 / RS485 / USB Port;
Max. 255 Minutes Power-off Delay after ACC-off;
GPS Tracking;
3G/ 4G Remote View on PC or Smartphone;
Wi-Fi Connectivity/ Wi-Fi Hotspot;
Supports PTT talkback function.
Automatic shutdown under low batter^{y voltage}

Specifications:

Power	Voltage Input	DC8-36V
	Voltage Output	DC12V (+/-0.2V, max. 2.0A)
	Voltage Output	DC5V (+/-0.2V, max. 0.5A)
System	Language	Chinese/English
	OSD	Graphical User interface OSD menu
	Password	Users Password/ Administrator Password
Video	Video input	4~8CH AHD or Analog Video Inputs
	Video output	1CH Video Inputs (1.0Vp-p/ 75 Ohms)
	Preview	1CH/ 4 CH Preview.
	Recording Ratio	PAL: 25 Frame/s; NTSC: 30 Frame/s
	Image Compression	H.264 Main profile
Audio	Audio input	4-CH
	Audio output	1-CH
	Recording mode	Audio & Video sync.
Image processing & Storage	Video Quality	720P/D1 adjustable for each channel; Highest Video Quality: 4CH Full 720P
	Bit Rate	720P: 2048Kbps~6144Kbps
		D1: 512Kbps~1536Kbps
		5 levels optional.
	Storage	2TB Hard Disk & 128GB SD Card (maximum)
Alarm	Alarm input	7 alarm inputs
Alarm	Alarm output	2 alarm output,
Communication Port	RJ45 Interface	Yes
	USB 2.0 Port	Yes
	RS232 Interface	3 RS232 interface
Wireless	3G/4G	WCDMA / HSDPA / HSUPA / LTE
Wireless	Wi-Fi	Optional (Wi-Fi Client/ Wi-Fi Hotspot)
GPS	Built-in GPS
G-Sensor	Yes
Upgrade	Support HDD & SD card Firmware Upgrading
Operation Environment	Temperature	-25 degrees to +70 degrees
Operation Environment	Humidity	10% to 95%

Pictures:

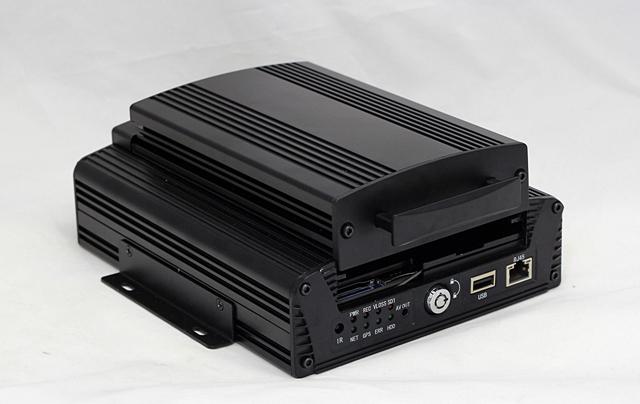

M710 is an advanced Vehicle-Mounted DVR based on AHD 720P technology. Built-in high performance video processor chipset and H.264 encoding and decoding protocols, M710 implements video recording, storage and replaying. Integrated with 3G/4G/WiFi module, implements vehicle remote monitoring, remote analysis and processing.
