AHD 1.3MP 720P 15M Night Vision Vehicle Mounted Infrared Dome Camera Rearview
Price:
negotiation
MOQ:
1 piece
Delivery Time:
within 5 ~ 8 workdays
Brand:
RECODA
Product Description
AHD 1.3MP 720P 15M Night Vision Vehicle Mounted Infrared Dome Camera Rearview
Model: C802-AHD
MAIN FEATURES:
- 1/4'' Sony CMOS
- Resolution: 1280x720 pixels
- 2.8 / 6.0 / 3.6mm lens optional
- 24*LEDs, IR distance 15-20m
- Can be easily installed anywhere in the bus, tractor etc
- white, grey optional
Specifications:
| Rating | IP66 |
| Filter | Double Layers Crystal |
| Image Sensor | 1/4" color Sony CMOS |
| Pixels | 1.0 Megapixel (1280 x 720 ) |
| IR LED | 24PCs IR LED |
| Vertical frequency | NTSC:60Hz PAL:50Hz |
| Horizontal frequency | NTSC:15.734KHz PAL:15.625KHz |
| Clock frequency | NTSC:28.636MHz PAL:28.375MHz |
| Scaning System | 2:1 Interlace |
| S / N Ratio | ≥48dB |
| Electronic Shutter | NTSC:1/60/10000s PAL:1/1511/10000s |
| White Balance | Auto Tracking |
| Back Light Compensation | ON |
| Auto Gain Control | ON |
| Gamma | 0.45 |
| Video output | 1V p-p,75Ω |
| Lens | 3.58mm Vari-focal Lens |
| Viewing Angle | Horizontal: 30 °160 ° |
| Power Supply | DC12V ±10% |
| Current Comsumption | 110mA |
| Available IR Distance | 15M |
| Storage Temperature | -30+60 degree |
| Operating Temperature | -30+40 degree |

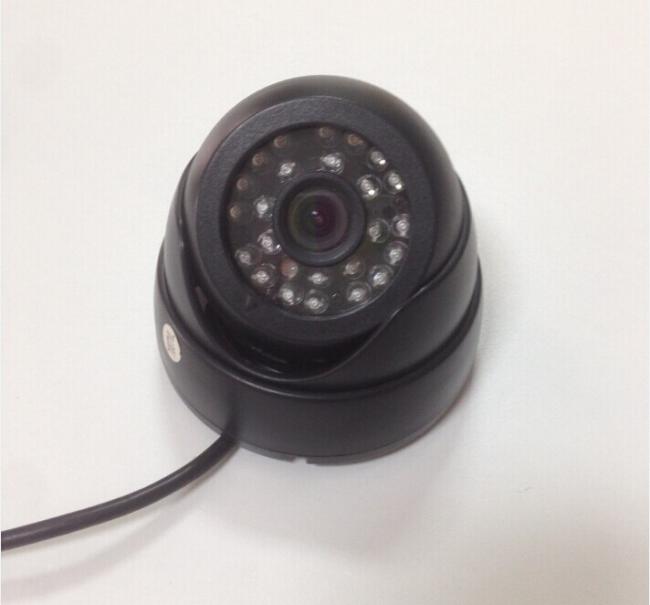

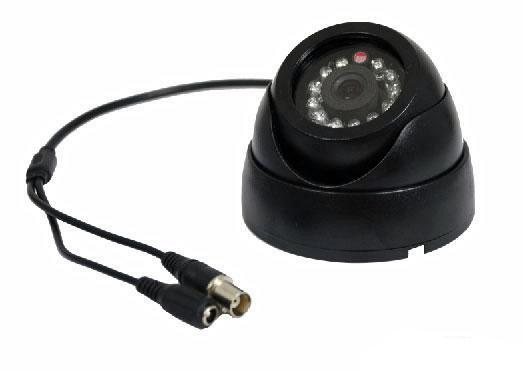

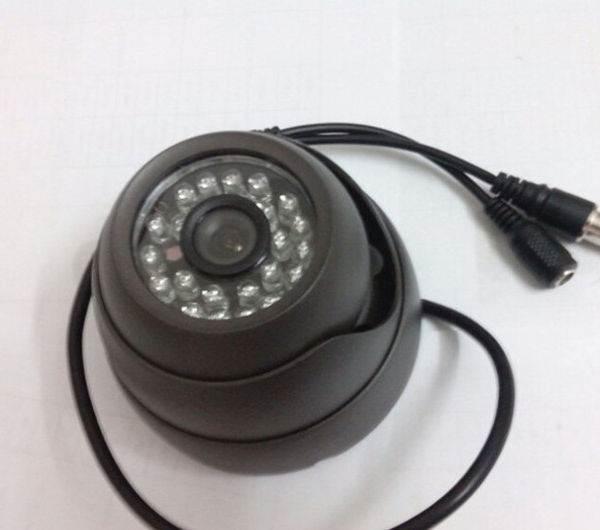

Images of Vehicle mounted AHD 720P night vision Dome Camera

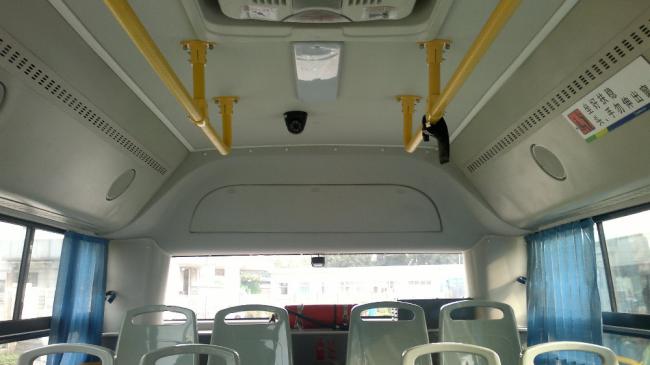

Installation:
