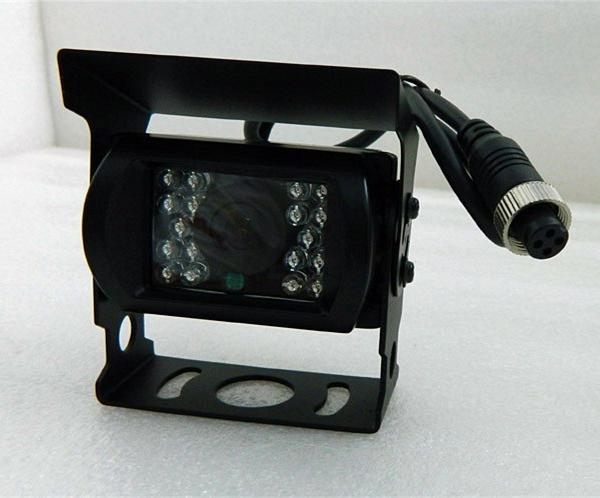

1/4" CMOS 720P AHD Cameras Rear View Waterproof Car Mounted Camera
1/4" CMOS 720P AHD Car Cameras Rear View Waterproof Car Mounted Camera
Features:
- Metal shell, waterproof, Rear-view
- Image sensor: 1/3’’ or 1/4’’ CMOS
- Lens: 3.6mm/ 2.8mm/ 6mm/ Customized optional
- Resolutions: 720P(1280*720) / 1080P(1920*1080)
- Pixel: 1.3 megapixel or 2.0 megapixel
- Waterproof level: IP66
- Signal System: PAL or NTSC
- Shutter Speed: 1/50 – 1/15,000 Sec.
- Camera port: Aviation port
- Video orientation: Normal image / Mirror image
Specifications:
|
Camera |
Car rear view AHD camera |
||
|
Image Sensor |
1/4"CMOS |
1/3" CMOS |
1/2.8" CMOS |
|
DSP Technology |
HD AHD |
||
|
Signal System |
PAL /NTSC |
||
|
Effective Pixels |
1280(H) × 720(V) |
1280(H) × 720(V) |
1920 (H) × 1080 (V) |
|
Resolution |
1.0mp |
1.3mp |
2.0mp |
|
Minimum lllumination |
Color(0.1 Lux/F1.2), B/W(0 Lux/F1.2,IR On) |
Color(0.01 Lux/F1.2), B/W(0 Lux/F1.2,IR On) |
Color(0.001 Lux/F1.2), B/W(0 Lux/F1.2,IR On) |
|
IR CUT |
Support |
||
|
Features |
waterproof |
||
|
AGC |
Auto |
||
|
BLC |
Auto |
||
|
White Balance |
Auto |
||
|
Day & Night |
Auto |
||
|
Shutter |
1/50(1/60) ~ 1/100,000 Sec. |
||
|
S/N Ratio |
More Than 48dB (AGC Off) |
||
|
Lens |
|||
|
Focal Length |
3.6mm/F2.0 |
||
|
Lens Type |
board Lens |
||
|
Mount Type |
M12X0.5 |
||
|
Option Lens |
6mm/8mm/12mm/Lens |
||
|
Infrared Luminary |
18 pieces IR-LED |
||
|
Infrared Wavelength |
850 nm |
||
|
Illuminate Distance |
More than 15 M |
||
|
Waterproof Criterion |
IP66 |
||
|
Video Output |
1.0vp-p 75Ω BNC Connector |
||
|
Working Environment |
-30°C~+60°C / <95%RH |
||
|
Power supply |
DC12V±10% |
||
|
Operating Current |
IR On:400mA max., IR Off: Less than 120mA |
||
Application:
Delievery Time: 1-3 days for Samples order; 7-20 days for large orders.
Shipping Methods: EMS, DHL, Fedex, TNT, Aramex or as customer required.
