720P 2TB Hard Disk AHD Mobile DVR With GPS WIFI Support Real Time Monitoring
720P 2TB Hard Disk AHD Mobile DVR With GPS WIFI Support Real Time Monitoring
Main Features:
4 CH AHD 1280x720P;
Real time monitoring via 3G/4G;
6CH Alarm Input, 2CH Alarm Output;
MAX 2TB hard driver & 128GB SD card ;
Real-time GPS Tracking;
WIFI auto downloading;
6-36V wide voltage ;
Support Broadcast/Intercom/Text sent etc;
Specifications:
| Item | Parameter |
| OS | Linux |
| Language | English/Chinese/Customized |
| Video Compression | H.264 Compression |
| OSD | Overlays information such as date time and vehicle ID |
| Video Input | 4CH 960P/720P AHD input,aviation connector, 1.0Vp-p, 75Ω |
| Video Onput | 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view |
| Preview | Support 1 channel and 4 channels preview., |
| Resolution | 720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1 |
| Image Quality | 1-4 levels, 1 is the highest level |
| Record Mode | The default setting is auto recording after power on. |
| Audio Input | 4CH Aviation Plug Input |
| Record Mode | The default setting is auto recording after power on. |
| Audio Compression | G.726 compression, 8KB/s speed |
| Alarm Input | 7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage |
| Alarm Output | 2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off |
| Interface | 3CH RS232, POS/Fuel Sensor/LED Advertisement Connection |
| Wireless Transmission | Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE; |
| GPS Position | Support Built GPS/BD Module |
| Storage | Max 2.5” 1TB HDD+128GB SD Card |
| Update | Support USB Updating, SD Card Updating,OTA Remote Updating |
| Playback | Max support 4CH Replay /Stop/Fast/Slow at same time |
| Optional Functions | Voice Call,TTS Voice Broadcast,Serial Expand |
| Input Voltage | DC:+6V - +36V |
| Output Voltage | +12V~1.5A,+5V~1.5A |
| Power | Working <5W |
| Working Temperature | -20℃ - +70℃ |
| Working Humidity | 20% - 80% |
| Size | 200 (D)* 187(W)* 62(H) mm |
| Weight | 2kg |

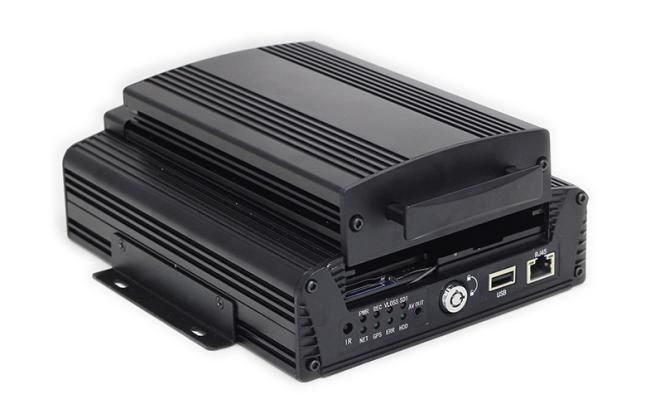

Product Pictures:

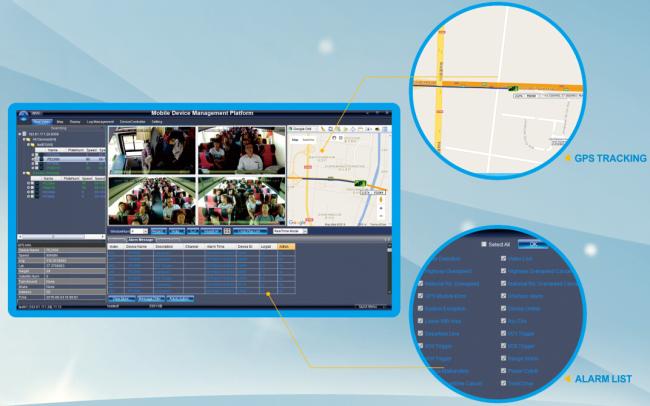

Software:
